HE-016-MC

Name: HE-016-MC - Communica [Part No: HE-016-MC]
Brand: Wain
SKU: HE-016-MC
Price: 153.90 ZAR
Availability: InStock

SKU: HE-016-MC

BRAND: Wain

R 176.99_{(inc VAT)}
R 153.90_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over R1,000.00

Collections: Connectors

Type: Power Connectors

Category: Heavy Duty Power Connector Inserts & Modules

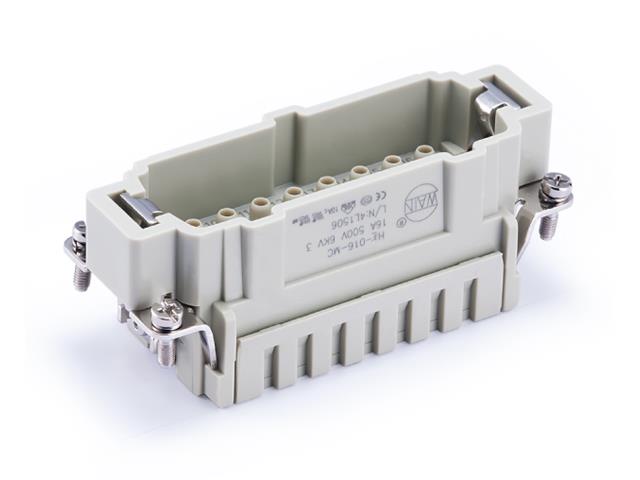

Series 16E (C) Insert 16P+E - Size 16B - Male Crimp Termination 16A/500V = 09330162602

Series 16E (C) Insert 16P+E - Size 16B

Specifications

Inserts
Number of contacts	16+PE
Electrical data acc. to DIN EN 61 984
---Rated current	16A
---Rated voltage	500V
---Rated impulse voltage	6kV
---Pollution degree	3
---Pollution degree 2 also	16A 400/690V 6kV 2
Rated voltage acc. to UL/CSA	600V
Insulation resistance	≥10¹⁰Ω
Material	polycarbonate
Limiting temperatures	-40℃...+125℃
Flammability acc. to UL 94	V0
Mechanical working life(mating cycles)	≥500
Contacts
Material	copper alloy
Surface	hard-gold plated
	hard-silver plated
Contact resistance	≤1mΩ
Crimp terminal
---Wrie gauge	0.14-4.0mm²
---AWG	26-12
---Stripping length	7.5mm

Downloads

Datasheet - HE-016-MC

Additional Information

Device	Insert
Type	Series 16E (C) \| 16P+E \| Size 16B

Enhance your electrical connections with the HE-016-MC Series 16E (C) Insert. Designed for reliability, this male crimp termination supports 16A at 500V, ensuring robust performance in demanding environments. With exceptional insulation resistance and a durable polycarbonate construction, it's perfect for high-temperature applications. Upgrade your setup with this high-quality insert for long-lasting reliability and safety.
