HE-016-MS B

Name: HE-016-MS B - Communica [Part No: HE-016-MS B]
Brand: Wain
SKU: HE-016-MS B
Price: 304.56 ZAR
Availability: InStock

SKU: HE-016-MS B

BRAND: Wain

R 350.24_{(inc VAT)}
R 304.56_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over R1,000.00

Collections: Connectors

Type: Power Connectors

Category: Heavy Duty Power Connector Inserts & Modules

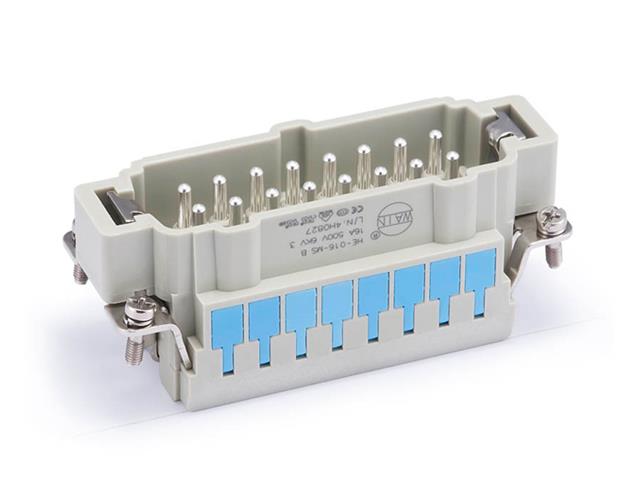

Series 16ES Insert 16P+E - Size 16B - Male Spring Termination 16A/500V = 09330162616

Series 16ES Insert 16P+E - Size 16B

Specifications

Inserts
Number of contacts	16+PE
Electrical data acc. to DIN EN 61 984
---Rated current	16A
---Rated voltage	500V
---Rated impulse voltage	6kV
---Pollution degree	3
---Pollution degree 2 also	16A 400/690V 6kV 2
Rated voltage acc. to UL/CSA	600V
Insulation resistance	≥10¹⁰Ω
Material	polycarbonate
Limiting temperatures	-40℃...+125℃
Flammability acc. to UL 94	V0
Mechanical working life(mating cycles)	≥500
Contacts
Material	copper alloy
Surface	hard-gold plated
	hard-silver plated
Contact resistance	≤1mΩ
Spring terminal
---Wrie gauge	0.14-2.5mm²
---AWG	26-14
---Stripping length	7-9mm

Downloads

Datasheet - HE-016-MS B

Additional Information

Device	Insert
Type	Series 16ES \| 16P+E \| Size 16B

Upgrade your electrical connections with the HE-016-MS B Series 16ES Insert. Designed for optimal performance, this male spring termination offers reliable 16A/500V power handling, ensuring safety and durability in demanding environments. With a robust construction and high-quality materials, it guarantees a long-lasting solution for your electrical needs. Perfect for any project requiring dependable connectivity.
