HE-016-MS B(17-32)

Name: HE-016-MS B(17-32) - Communica [Part No: HE-016-MS B(17-32)]
Brand: Wain
SKU: HE-016-MS B(17-32)
Price: 335.02 ZAR
Availability: InStock

SKU: HE-016-MS B(17-32)

BRAND: Wain

R 385.27_{(inc VAT)}
R 335.02_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over ZAR 1,000.00

Collections: Connectors

Type: Power Connectors

Category: Heavy Duty Power Connector Inserts & Modules

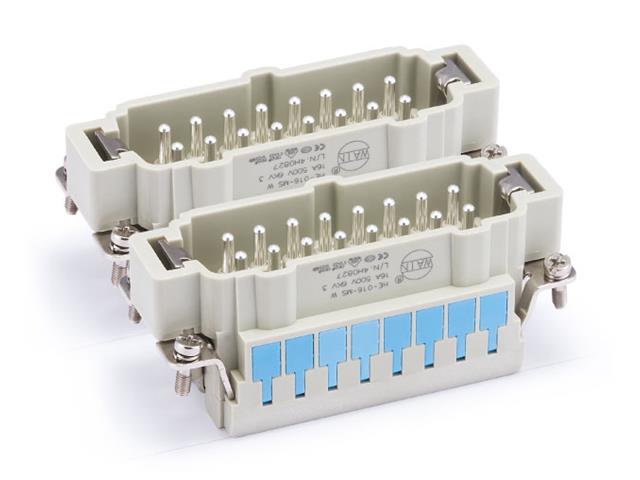

Series 32ES Insert 16P+E - Size 32B - Male Spring Termination 16A/500V -Numbered 17- 32 = 09330162626

Series 32ES Insert 16P+E - Size 32B

Specifications

Inserts
Number of contacts	32(2x16)+PE
Electrical data acc. to DIN EN 61 984
---Rated current	16A
---Rated voltage	500V
---Rated impulse voltage	6kV
---Pollution degree	3
---Pollution degree 2 also	16A 400/690V 6kV 2
Rated voltage acc. to UL/CSA	600V
Insulation resistance	≥10¹⁰Ω
Material	polycarbonate
Limiting temperatures	-40℃...+125℃
Flammability acc. to UL 94	V0
Mechanical working life(mating cycles)	≥500
Contacts
Material	copper alloy
Surface	hard-gold plated
	hard-silver plated
Contact resistance	≤1mΩ
Spring terminal
---Wrie gauge	0.14-2.5mm²
---AWG	26-14
---Stripping length	7-9mm

Downloads

Datasheet - HE-016-MS B(17-32)

Additional Information

Device	Insert
Type	Series 32ES \| 16P+E \| Size 32B

Enhance your electrical projects with the HE-016-MS B(17-32) Series 32ES Insert. This robust male spring termination insert offers reliable performance with a rated current of 16A and voltage of 500V. Built for durability and safety, it features hard-gold plated contacts, ensuring superior conductivity and longevity. Ideal for demanding applications, this insert is your go-to solution for dependable connections.
