HE-024-F(25-48)

Name: HE-024-F(25-48) - Communica [Part No: HE-024-F(25-48)]
Brand: Wain
SKU: HE-024-F(25-48)
Price: 366.80 ZAR
Availability: InStock

SKU: HE-024-F(25-48)

BRAND: Wain

R 421.82_{(inc VAT)}
R 366.80_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over ZAR 1,000.00

Collections: Connectors

Type: Power Connectors

Category: Heavy Duty Power Connector Inserts & Modules

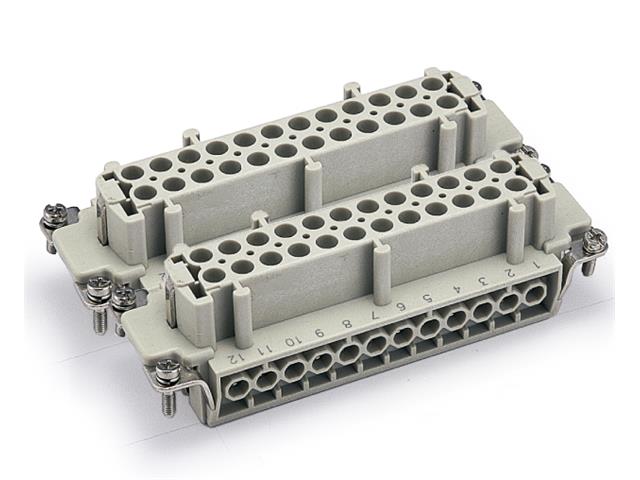

Series 48E Insert 24P+E - Size 48B - Female Screw Termination w/Wire Protection 16A/500V -Numbered 25-48 = 09330242711

Series 48E Insert 24P+E - Size 48B

Specifications

Inserts
Number of contacts	48(2x24)+PE
Electrical data acc. to DIN EN 61 984
---Rated current	16A
---Rated voltage	500V
---Rated impulse voltage	6kV
---Pollution degree	3
---Pollution degree 2 also	16A 400/690V 6kV 2
Rated voltage acc. to UL/CSA	600V
Insulation resistance	≥10¹⁰Ω
Material	polycarbonate
Limiting temperatures	-40℃...+125℃
Flammability acc. to UL 94	V0
Mechanical working life(mating cycles)	≥500
Contacts
Material	copper alloy
Surface	hard-gold plated
	hard-silver plated
Contact resistance	≤1mΩ
Screw terminal
---Wrie gauge	0.75-2.5mm²
---AWG	18-14
---Tightening/Test torque	0.5Nm
---Stripping length	7.0mm

Downloads

Datasheet - HE-024-F(25-48)

Additional Information

Device	Insert
Type	Series 48E \| 24P+E \| Size 48B

Enhance your electrical connections with the HE-024-F(25-48) Series 48E Insert. Designed for durability and efficiency, this female screw termination offers 16A/500V performance and superior wire protection. Built to withstand rigorous conditions, it ensures reliable operation and longevity for your projects. Upgrade your setup with this high-quality insert today!
