HE-024-FC

Name: HE-024-FC - Communica [Part No: HE-024-FC]
Brand: Wain
SKU: HE-024-FC
Price: 189 ZAR
Availability: InStock

SKU: HE-024-FC

BRAND: Wain

R 217.35_{(inc VAT)}
R 189.00_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over R1,000.00

Collections: Connectors

Type: Power Connectors

Category: Heavy Duty Power Connector Inserts & Modules

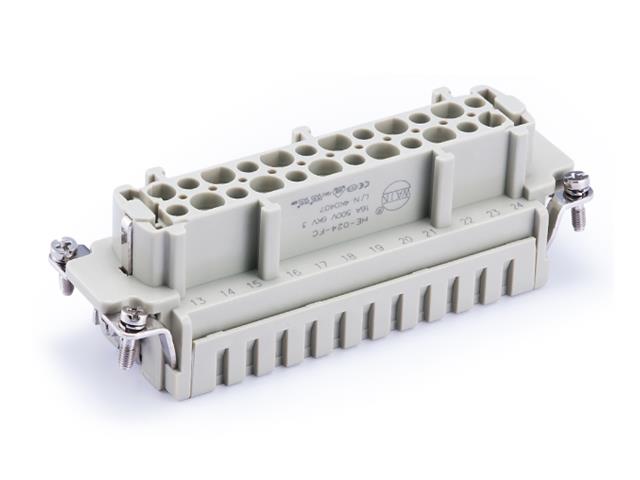

Series 24E (C) Insert 24P+E - Size 24B - Female Crimp Termination 16A/500V = 09330242702

Series 24E (C) Insert 24P+E - Size 24B

Specifications

Inserts
Number of contacts	24+PE
Electrical data acc. to DIN EN 61 984
---Rated current	16A
---Rated voltage	500V
---Rated impulse voltage	6kV
---Pollution degree	3
---Pollution degree 2 also	16A 400/690V 6kV 2
Rated voltage acc. to UL/CSA	600V
Insulation resistance	≥10¹⁰Ω
Material	polycarbonate
Limiting temperatures	-40℃...+125℃
Flammability acc. to UL 94	V0
Mechanical working life(mating cycles)	≥500
Contacts
Material	copper alloy
Surface	hard-gold plated
	hard-silver plated
Contact resistance	≤1mΩ
Crimp terminal
---Wrie gauge	0.14-4.0mm²
---AWG	26-12
---Stripping length	7.5mm

Downloads

Datasheet - HE-024-FC

Additional Information

Device	Insert
Type	Series 24E (C) \| 24P+E \| Size 24B

Discover the HE-024-FC Series 24E (C) Insert, designed for superior performance with 24+PE contacts and a robust 16A/500V rating. Crafted from durable polycarbonate and featuring hard-gold plated contacts, this reliable connector ensures excellent conductivity and a long mechanical lifespan. Perfect for demanding applications, it withstands extreme temperatures and pollution levels, delivering unmatched value and safety for your electrical needs.
