HE-024-FC(25-48)

Name: HE-024-FC(25-48) - Communica [Part No: HE-024-FC(25-48)]
Brand: Wain
SKU: HE-024-FC(25-48)
Price: 189 ZAR
Availability: InStock

SKU: HE-024-FC(25-48)

BRAND: Wain

R 217.35_{(inc VAT)}
R 189.00_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over R1,000.00

Collections: Connectors

Type: Power Connectors

Category: Heavy Duty Power Connector Inserts & Modules

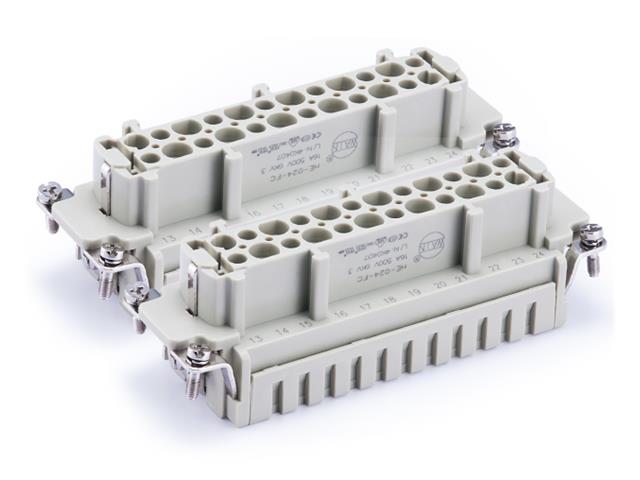

Series 48E (C) Insert 24P+E - Size 48B - Female Crimp Termination 16A/500V -Numbered 25-48 = 09330242712

Series 48E (C) Insert 24P+E - Size 48B

Specifications

Inserts
Number of contacts	48(2x24)+PE
Electrical data acc. to DIN EN 61 984
---Rated current	16A
---Rated voltage	500V
---Rated impulse voltage	6kV
---Pollution degree	3
---Pollution degree 2 also	16A 400/690V 6kV 2
Rated voltage acc. to UL/CSA	600V
Insulation resistance	≥10¹⁰Ω
Material	polycarbonate
Limiting temperatures	-40℃...+125℃
Flammability acc. to UL 94	V0
Mechanical working life(mating cycles)	≥500
Contacts
Material	copper alloy
Surface	hard-gold plated
	hard-silver plated
Contact resistance	≤1mΩ
Crimp terminal
---Wrie gauge	0.14-4.0mm²
---AWG	26-12
---Stripping length	7.5mm

Downloads

Datasheet - HE-024-FC(25-48)

Additional Information

Device	Insert
Type	Series 48E (C) \| 24P+E \| Size 48B

Upgrade your electrical connections with the HE-024-FC(25-48) Insert 24P+E. Designed for durability and efficiency, this female crimp termination supports 16A at 500V, ensuring reliable performance in demanding environments. With superior insulation resistance and a mechanical lifespan of over 500 cycles, this insert is perfect for any electrical project. Choose quality and safety with our premium polycarbonate and copper alloy materials.
