HE-024-FSB

Name: HE-024-FSB - Communica [Part No: HE-024-FSB]
Brand: Wain
SKU: HE-024-FSB
Price: 400.14 ZAR
Availability: InStock

SKU: HE-024-FSB

BRAND: Wain

R 460.16_{(inc VAT)}
R 400.14_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over ZAR 1,000.00

Collections: Connectors

Type: Power Connectors

Category: Heavy Duty Power Connector Inserts & Modules

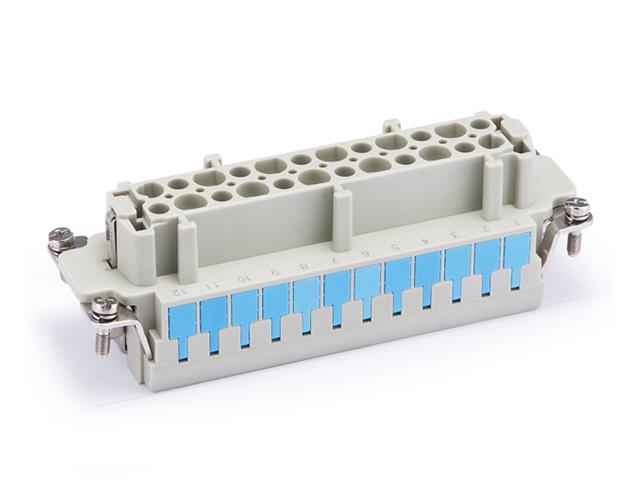

Series 24ES Insert 24P+E - Size 24B - Female Spring Termination 16A/500V = 09330242716

Series 24ES Insert 24P+E - Size 24B

Specifications

Inserts
Number of contacts	24+PE
Electrical data acc. to DIN EN 61 984
---Rated current	16A
---Rated voltage	500V
---Rated impulse voltage	6kV
---Pollution degree	3
---Pollution degree 2 also	16A 400/690V 6kV 2
Rated voltage acc. to UL/CSA	600V
Insulation resistance	≥10¹⁰Ω
Material	polycarbonate
Limiting temperatures	-40℃...+125℃
Flammability acc. to UL 94	V0
Mechanical working life(mating cycles)	≥500
Contacts
Material	copper alloy
Surface	hard-gold plated
	hard-silver plated
Contact resistance	≤1mΩ
Spring terminal
---Wrie gauge	0.14-2.5mm²
---AWG	26-14
---Stripping length	7-9mm

Downloads

Datasheet - HE-024-FSB

Additional Information

Device	Insert
Type	Series 24ES \| 24P+E \| Size 24B

Discover the HE-024-FSB Series 24ES Insert, designed for reliable performance with 24+PE contacts and a rated current of 16A at 500V. Built for durability and safety, it features hard-gold plated contacts and operates in extreme temperatures from -40℃ to +125℃. Upgrade your electrical connections with this high-quality, versatile insert for unmatched reliability and efficiency.
