HE-024-M

Name: HE-024-M - Communica [Part No: HE-024-M]
Brand: Wain
SKU: HE-024-M
Price: 291.92 ZAR
Availability: InStock

SKU: HE-024-M

BRAND: Wain

R 335.71_{(inc VAT)}
R 291.92_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over ZAR 1,000.00

Collections: Connectors

Type: Power Connectors

Category: Heavy Duty Power Connector Inserts & Modules

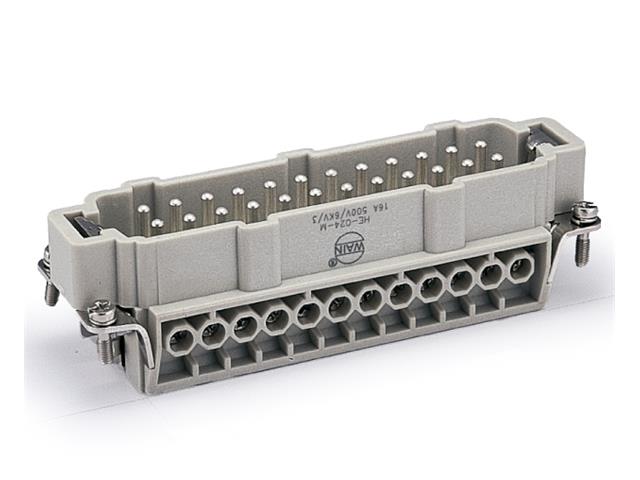

Series 24E Insert 24P+E - Size 24B - Male Screw Termination w/Wire Protection 16A/500V = 09330242601

Series 24E Insert 24P+E - Size 24B

Specifications

Inserts
Number of contacts	24+PE
Electrical data acc. to DIN EN 61 984
---Rated current	16A
---Rated voltage	500V
---Rated impulse voltage	6kV
---Pollution degree	3
---Pollution degree 2 also	16A 400/690V 6kV 2
Rated voltage acc. to UL/CSA	600V
Insulation resistance	≥10¹⁰Ω
Material	polycarbonate
Limiting temperatures	-40℃...+125℃
Flammability acc. to UL 94	V0
Mechanical working life(mating cycles)	≥500
Contacts
Material	copper alloy
Surface	hard-gold plated
	hard-silver plated
Contact resistance	≤1mΩ
Screw terminal
---Wrie gauge	0.75-2.5mm²
---AWG	18-14
---Tightening/Test torque	0.5Nm
---Stripping length	7.0mm

Downloads

Datasheet - HE-024-M

Additional Information

Device	Insert
Type	Series 24E \| 24P+E \| Size 24B

Discover the HE-024-M Series 24E Insert, designed for robust performance with 24 contacts and a rated current of 16A. Its durable polycarbonate construction ensures reliability in extreme temperatures from -40℃ to +125℃. Perfect for industrial applications, this insert offers superior insulation resistance and secure screw termination, making it an essential choice for your electrical needs.
