HE-024-M(25-48)

Name: HE-024-M(25-48) - Communica [Part No: HE-024-M(25-48)]
Brand: Wain
SKU: HE-024-M(25-48)
Price: 321.12 ZAR
Availability: InStock

SKU: HE-024-M(25-48)

BRAND: Wain

R 369.29_{(inc VAT)}
R 321.12_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over ZAR 1,000.00

Collections: Connectors

Type: Power Connectors

Category: Heavy Duty Power Connector Inserts & Modules

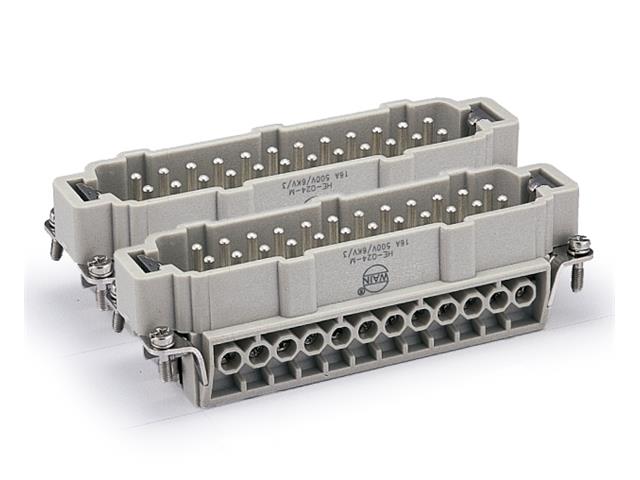

Series 48E Insert 24P+E - Size 48B - Male Screw Termination w/Wire Protection 16A/500V -Numbered 25-48 = 09330242611

Series 48E Insert 24P+E - Size 48B

Specifications

Inserts
Number of contacts	48(2x24)+PE
Electrical data acc. to DIN EN 61 984
---Rated current	16A
---Rated voltage	500V
---Rated impulse voltage	6kV
---Pollution degree	3
---Pollution degree 2 also	16A 400/690V 6kV 2
Rated voltage acc. to UL/CSA	600V
Insulation resistance	≥10¹⁰Ω
Material	polycarbonate
Limiting temperatures	-40℃...+125℃
Flammability acc. to UL 94	V0
Mechanical working life(mating cycles)	≥500
Contacts
Material	copper alloy
Surface	hard-gold plated
	hard-silver plated
Contact resistance	≤1mΩ
Screw terminal
---Wrie gauge	0.75-2.5mm²
---AWG	18-14
---Tightening/Test torque	0.5Nm
---Stripping length	7.0mm

Downloads

Datasheet - HE-024-M(25-48)

Additional Information

Device	Insert
Type	Series 48E \| 24P+E \| Size 48B

Discover the HE-024-M(25-48) Series 48E Insert, designed for reliable male screw termination with superior wire protection. Rated for 16A and 500V, this durable connector ensures optimal performance in demanding environments, making it ideal for various electrical applications. Upgrade your setup with this robust solution, featuring hard-gold and hard-silver plated contacts for exceptional conductivity and longevity.
