HE-024-MC

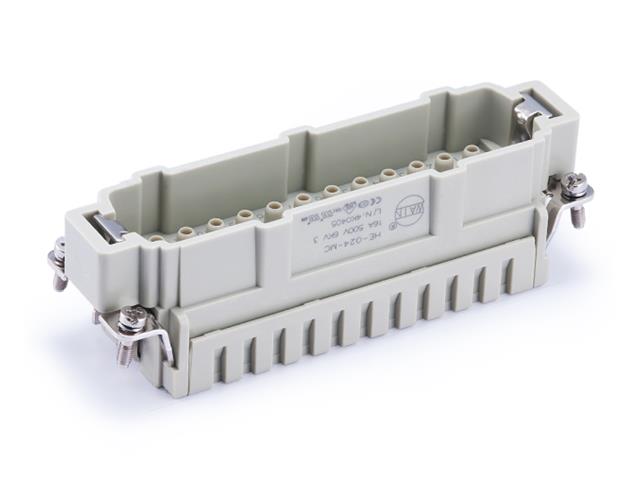

Name: HE-024-MC - Communica [Part No: HE-024-MC]
Brand: Wain
SKU: HE-024-MC
Price: 164.70 ZAR
Availability: InStock

SKU: HE-024-MC

BRAND: Wain

R 189.41_{(inc VAT)}
R 164.70_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over ZAR 1,000.00

Collections: Connectors

Type: Power Connectors

Category: Heavy Duty Power Connector Inserts & Modules

Series 24E (C) Insert 24P+E - Size 24B - Male Crimp Termination 16A/500V = 09330242602

Series 24E (C) Insert 24P+E - Size 24B

Specifications

Inserts
Number of contacts	24+PE
Electrical data acc. to DIN EN 61 984
---Rated current	16A
---Rated voltage	500V
---Rated impulse voltage	6kV
---Pollution degree	3
---Pollution degree 2 also	16A 400/690V 6kV 2
Rated voltage acc. to UL/CSA	600V
Insulation resistance	≥10¹⁰Ω
Material	polycarbonate
Limiting temperatures	-40℃...+125℃
Flammability acc. to UL 94	V0
Mechanical working life(mating cycles)	≥500
Contacts
Material	copper alloy
Surface	hard-gold plated
	hard-silver plated
Contact resistance	≤1mΩ
Crimp terminal
---Wrie gauge	0.14-4.0mm²
---AWG	26-12
---Stripping length	7.5mm

Downloads

Datasheet - HE-024-MC

Additional Information

Device	Insert
Type	Series 24E (C) \| 24P+E \| Size 24B

Discover the HE-024-MC Insert, a robust solution featuring 24 contacts with male crimp termination, rated for 16A and 500V. Crafted from durable polycarbonate and designed for superior performance in demanding environments, this insert ensures reliable connections and longevity, making it ideal for your electrical needs. Upgrade your setup with this high-quality component today!
