HE-024-MSB

Name: HE-024-MSB - Communica [Part No: HE-024-MSB]
Brand: Wain
SKU: HE-024-MSB
Price: 349.92 ZAR
Availability: InStock

SKU: HE-024-MSB

BRAND: Wain

R 402.41_{(inc VAT)}
R 349.92_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over ZAR 1,000.00

Collections: Connectors

Type: Power Connectors

Category: Heavy Duty Power Connector Inserts & Modules

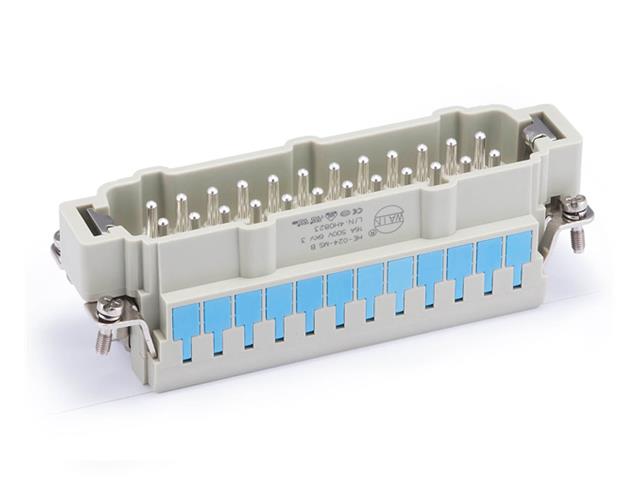

Series 24ES Insert 24P+E - Size 24B - Male Spring Termination 16A/500V = 09330242616

Series 24ES Insert 24P+E - Size 24B

Specifications

Inserts
Number of contacts	24+PE
Electrical data acc. to DIN EN 61 984
---Rated current	16A
---Rated voltage	500V
---Rated impulse voltage	6kV
---Pollution degree	3
---Pollution degree 2 also	16A 400/690V 6kV 2
Rated voltage acc. to UL/CSA	600V
Insulation resistance	≥10¹⁰Ω
Material	polycarbonate
Limiting temperatures	-40℃...+125℃
Flammability acc. to UL 94	V0
Mechanical working life(mating cycles)	≥500
Contacts
Material	copper alloy
Surface	hard-gold plated
	hard-silver plated
Contact resistance	≤1mΩ
Spring terminal
---Wrie gauge	0.14-2.5mm²
---AWG	26-14
---Stripping length	7-9mm

Downloads

Datasheet - HE-024-MSB

Additional Information

Device	Insert
Type	Series 24ES \| 24P+E \| Size 24B

Upgrade your electrical connections with the HE-024-MSB Series 24ES Insert. Designed for reliability, this 24P+E male spring termination connector supports 16A at 500V, ensuring optimal performance in demanding environments. Its durable polycarbonate construction withstands extreme temperatures from -40℃ to +125℃, making it perfect for various applications. Enjoy peace of mind with a robust design and superior contact resistance for long-lasting efficiency.
