HE-024-MSB(25-48)

Name: HE-024-MSB(25-48) - Communica [Part No: HE-024-MSB(25-48)]
Brand: Wain
SKU: HE-024-MSB(25-48)
Price: 384.91 ZAR
Availability: InStock

SKU: HE-024-MSB(25-48)

BRAND: Wain

R 442.65_{(inc VAT)}
R 384.91_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over ZAR 1,000.00

Collections: Connectors

Type: Power Connectors

Category: Heavy Duty Power Connector Inserts & Modules

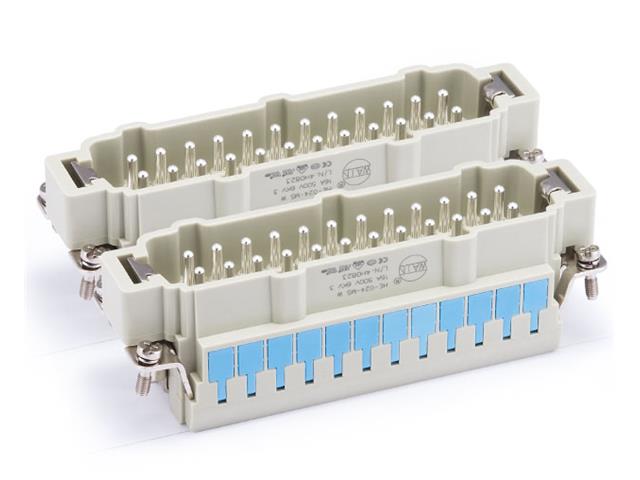

Series 48ES Insert 24P+E - Size 48B - Male Spring Termination 16A/500V -Numbered 25-48 = 09330242626

Series 48ES Insert 24P+E - Size 48B

Specifications

Inserts
Number of contacts	48(2x24)+PE
Electrical data acc. to DIN EN 61 984
---Rated current	16A
---Rated voltage	500V
---Rated impulse voltage	6kV
---Pollution degree	3
---Pollution degree 2 also	16A 400/690V 6kV 2
Rated voltage acc. to UL/CSA	600V
Insulation resistance	≥10¹⁰Ω
Material	polycarbonate
Limiting temperatures	-40℃...+125℃
Flammability acc. to UL 94	V0
Mechanical working life(mating cycles)	≥500
Contacts
Material	copper alloy
Surface	hard-gold plated
	hard-silver plated
Contact resistance	≤1mΩ
Spring terminal
---Wrie gauge	0.14-2.5mm²
---AWG	26-14
---Stripping length	7-9mm

Downloads

Datasheet - HE-024-MSB(25-48)

Additional Information

Device	Insert
Type	Series 48ES \| 24P+E \| Size 48B

Upgrade your connectivity with the HE-024-MSB(25-48) Series 48ES Insert. Designed for reliability, this male spring termination connector supports 16A at 500V, ensuring optimal performance in demanding environments. With its durable polycarbonate construction and superior contact resistance, enjoy a long-lasting, secure connection for all your electrical needs. Perfect for industrial and commercial applications, this insert guarantees safety and efficiency.
