HEE-010-FC

Name: HEE-010-FC - Communica [Part No: HEE-010-FC]
Brand: Wain
SKU: HEE-010-FC
Price: 107.51 ZAR
Availability: InStock

SKU: HEE-010-FC

BRAND: Wain

R 123.64_{(inc VAT)}
R 107.51_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over ZAR 1,000.00

Collections: Connectors

Type: Power Connectors

Category: Heavy Duty Power Connector Inserts & Modules

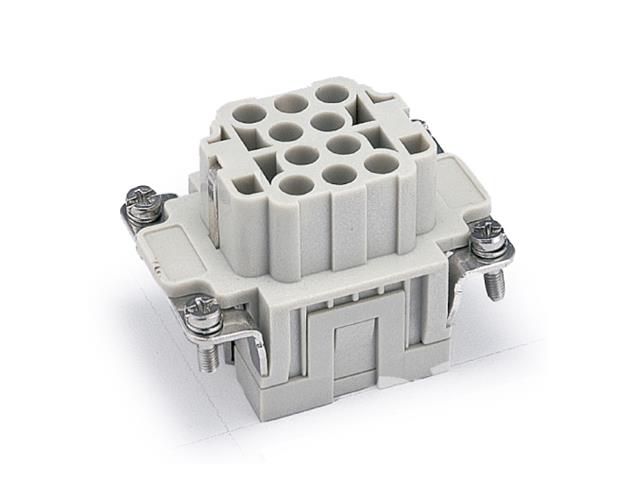

Series 10EE (C) Insert 10P+E - Size 6B - Female Crimp Termination 16A/500V = 09320103101

Series 10EE (C) Insert 10P+E - Size 6B

Specifications

Inserts
Number of contacts	10+PE
Electrical data acc. to EN 61 984
---Rated current	16A
---Rated voltage	500V
---Rated impulse voltage	6kV
---Pollution degree	3
---Pollution degree 2 also	16A 830V 8kV 2
Rated voltage acc. to UL	600V
Insulation resistance	≥10¹⁰Ω
Material	polycarbonate
Limiting temperatures	-40℃...+125℃
Flammability acc. to UL 94	V0
Mechanical working life(mating cycles)	≥500
Contacts
Material	copper alloy
Surface	hard-gold plated
Surface	hard-silver plated
Contact resistance	≤1mΩ
Crimp terminal
---Wrie gauge	0.14-4.0mm²
---AWG	26-12
---Stripping length	7.5mm

Downloads

Datasheet - HEE-010-FC

Additional Information

Device	Insert
Type	Series 10EE (C) \| 10P+E - Size 6B

Discover the HEE-010-FC Series 10EE (C) Insert, designed for reliable performance with 10P+E contacts, perfect for your electrical needs. With a robust 16A/500V rating and durable polycarbonate construction, this insert ensures safety and longevity. Upgrade your connections today with this high-quality, crimp termination solution!
