HEE-010-MC

Name: HEE-010-MC - Communica [Part No: HEE-010-MC]
Brand: Wain
SKU: HEE-010-MC
Price: 97.74 ZAR
Availability: InStock

SKU: HEE-010-MC

BRAND: Wain

R 112.40_{(inc VAT)}
R 97.74_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over ZAR 1,000.00

Collections: Connectors

Type: Power Connectors

Category: Heavy Duty Power Connector Inserts & Modules

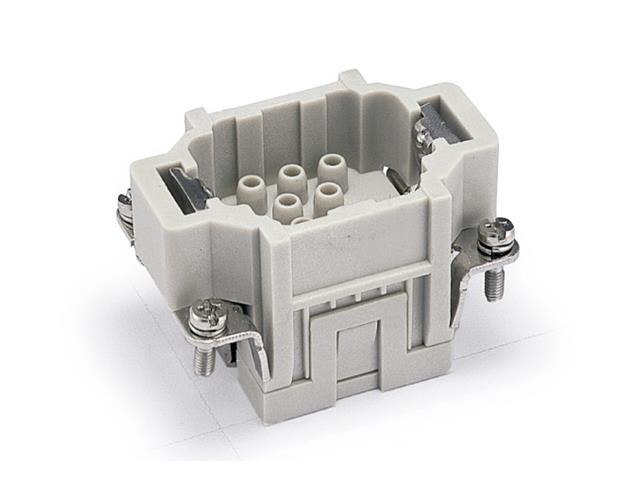

Series 10EE (C) Insert 10P+E - Size 6B - Male Crimp Termination 16A/500V = 09320103001

Series 10EE (C) Insert 10P+E

Specifications

Inserts
Number of contacts	10+PE
Electrical data acc. to EN 61 984
---Rated current	16A
---Rated voltage	500V
---Rated impulse voltage	6kV
---Pollution degree	3
---Pollution degree 2 also	16A 830V 8kV 2
Rated voltage acc. to UL	600V
Insulation resistance	≥10¹⁰Ω
Material	polycarbonate
Limiting temperatures	-40℃...+125℃
Flammability acc. to UL 94	V0
Mechanical working life(mating cycles)	≥500
Contacts
Material	copper alloy
Surface	hard-gold plated
Surface	hard-silver plated
Contact resistance	≤1mΩ
Crimp terminal
---Wrie gauge	0.14-4.0mm²
---AWG	26-12
---Stripping length	7.5mm

Downloads

Datasheet - HEE-010-MC

Additional Information

Device	Insert
Type	Series 10EE (C) \| 10P+E

Discover the HEE-010-MC Series 10EE (C) Insert, designed for reliable male crimp termination with a robust 16A/500V rating. Its durable polycarbonate construction and superior copper alloy contacts ensure exceptional performance and longevity, making it perfect for demanding applications. Upgrade your electrical connections with this efficient and high-quality solution.
