HEE-018-MC

Name: HEE-018-MC - Communica [Part No: HEE-018-MC]
Brand: Wain
SKU: HEE-018-MC
Price: 136.62 ZAR
Availability: InStock

SKU: HEE-018-MC

BRAND: Wain

R 157.11_{(inc VAT)}
R 136.62_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over ZAR 1,000.00

Collections: Connectors

Type: Power Connectors

Category: Heavy Duty Power Connector Inserts & Modules

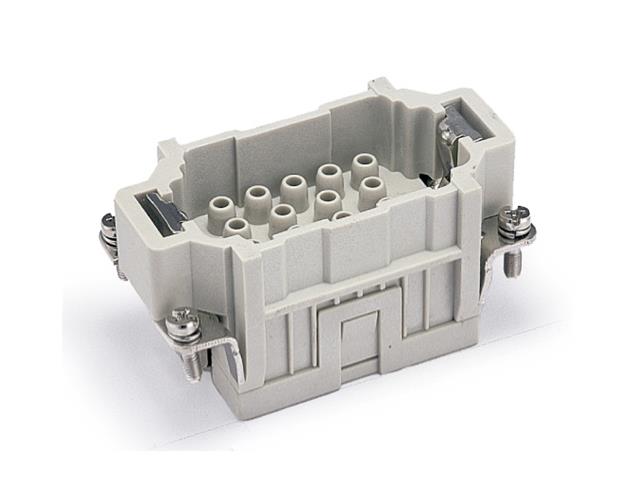

Series 18EE (C) Insert 18P+E - Size 10B - Male Crimp Termination 16A/500V = 09320183001

Series 18EE (C) Insert 18P+E

Specifications

Inserts
Number of contacts	18+PE
Electrical data acc. to EN 61 984
---Rated current	16A
---Rated voltage	500V
---Rated impulse voltage	6kV
---Pollution degree	3
---Pollution degree 2 also	16A 830V 8kV 2
Rated voltage acc. to UL	600V
Insulation resistance	≥10¹⁰Ω
Material	polycarbonate
Limiting temperatures	-40℃...+125℃
Flammability acc. to UL 94	V0
Mechanical working life(mating cycles)	≥500
Contacts
Material	copper alloy
Surface	hard-gold plated
Surface	hard-silver plated
Contact resistance	≤1mΩ
Crimp terminal
---Wrie gauge	0.14-4.0mm²
---AWG	26-12
---Stripping length	7.5mm

Downloads

Datasheet - HEE-018-MC

Additional Information

Device	Insert
Type	Series 18EE (C) \| 18P+E

The HEE-018-MC Series 18EE (C) Insert offers reliable male crimp termination for seamless electrical connections. With a robust 16A/500V rating and durable polycarbonate construction, it ensures safety and longevity, making it ideal for demanding applications. Upgrade your projects with this high-performance insert, designed for efficiency and maximum reliability.
