HEE-032-FC(33-64)

SKU: HEE-032-FC(33-64)

BRAND: Wain

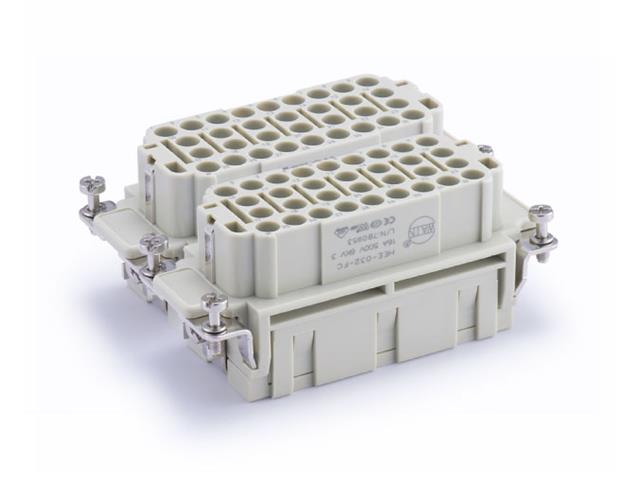

Series 64EE (C) Insert 32P+E - Size 32B - Female Crimp Termination 16A/500V -Numbered 33-64 = 09320323111

Series 64EE (C) Insert 32P+E

Specifications

Inserts
Number of contacts 64(2x32)+PE
Electrical data acc. to EN 61 984
---Rated current 16A
---Rated voltage  500V
---Rated impulse voltage 6kV
---Pollution degree 3
---Pollution degree 2 also 16A 830V 8kV 2
Rated voltage acc. to UL 600V
Insulation resistance ≥1010Ω
Material polycarbonate
Limiting temperatures -40℃...+125℃
Flammability acc. to UL 94 V0
Mechanical working life(mating cycles) ≥500
Contacts
Material copper alloy
Surface hard-gold plated
hard-silver plated
Contact resistance ≤1mΩ
Crimp terminal
---Wrie gauge 0.14-4.0mm2
---AWG 26-12
---Stripping length 7.5mm

Additional Information

Device Insert
Type Series 64EE (C) | 32P+E
