HEE-046-MC

Name: HEE-046-MC - Communica [Part No: HEE-046-MC]
Brand: Wain
SKU: HEE-046-MC
Price: 265.68 ZAR
Availability: InStock

SKU: HEE-046-MC

BRAND: Wain

R 305.53_{(inc VAT)}
R 265.68_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over ZAR 1,000.00

Collections: Connectors

Type: Power Connectors

Category: Heavy Duty Power Connector Inserts & Modules

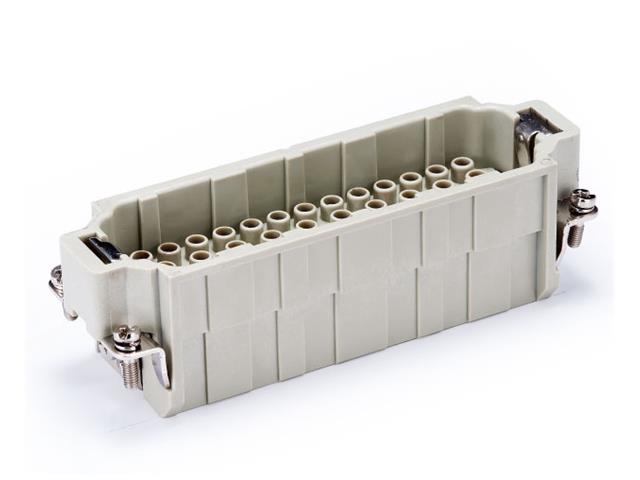

Series 46EEE (C) Insert 46P+E - Size 24B - Male Enhanced Crimp Termination 16A/500V = 09320463001

Series 46EEE (C) Insert 46P+E

Specifications

Product parameters

Inserts
Number of contacts	46+PE
Electrical data acc. to EN 61 984
---Rated current	16A
---Rated voltage	500V
---Rated impulse voltage	6kV
---Pollution degree	3
---Pollution degree 2 also	16A 830V 8kV 2
Rated voltage acc. to UL	600V
Insulation resistance	≥10¹⁰Ω
Material	polycarbonate
Limiting temperatures	-40℃...+125℃
Flammability acc. to UL 94	V0
Mechanical working life(mating cycles)	≥500
Contacts
Material	copper alloy
Surface	hard-gold plated
Surface	hard-silver plated
Contact resistance	≤1mΩ
Crimp terminal
---Wrie gauge	0.14-4.0mm²
---AWG	26-12
---Stripping length	7.5mm

Downloads

HEE-046-MC/N-Datasheet

Additional Information

Device	Insert
Type	Series 46EEE (C) \| 46P+E \| Size 24B

Discover the HEE-046-MC Series 46EEE (C) Insert, designed for reliable performance with a 16A/500V rating. Its enhanced crimp termination ensures secure connections, while the durable polycarbonate construction withstands extreme temperatures from -40℃ to +125℃. Perfect for demanding applications, this insert combines high electrical resistance and longevity, making it an essential choice for your projects.
