HEE-046-MC(47-92)

Name: HEE-046-MC(47-92) - Communica [Part No: HEE-046-MC(47-92)]
Brand: Wain
SKU: HEE-046-MC(47-92)
Price: 265.68 ZAR
Availability: InStock

SKU: HEE-046-MC(47-92)

BRAND: Wain

R 305.53_{(inc VAT)}
R 265.68_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over ZAR 1,000.00

Collections: Connectors

Type: Power Connectors

Category: Heavy Duty Power Connector Inserts & Modules

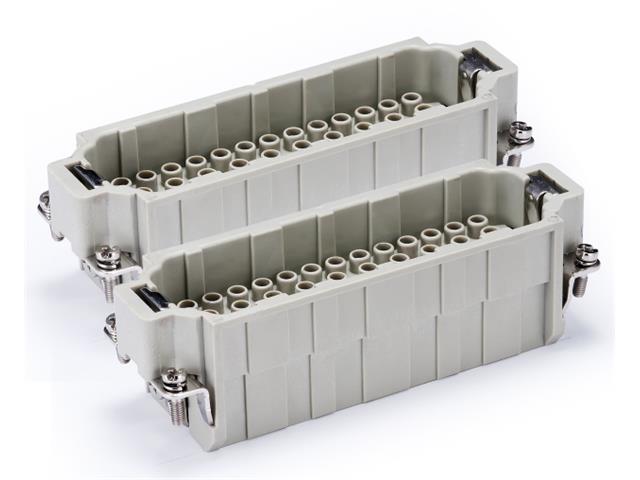

Series 92EEE (C) Insert 46P+E - Size 48B - Male Enhanced Crimp Termination 16A/500V -Numbered 47-92 = 09320463011

Series 92EEE (C) Insert 46P+E

Specifications

Product parameters

Inserts
Number of contacts	92(2x46)+PE
Electrical data acc. to EN 61 984
---Rated current	16A
---Rated voltage	500V
---Rated impulse voltage	6kV
---Pollution degree	3
---Pollution degree 2 also	16A 830V 8kV 2
Rated voltage acc. to UL	600V
Insulation resistance	≥10¹⁰Ω
Material	polycarbonate
Limiting temperatures	-40℃...+125℃
Flammability acc. to UL 94	V0
Mechanical working life(mating cycles)	≥500
Contacts
Material	copper alloy
Surface	hard-gold plated
Surface	hard-silver plated
Contact resistance	≤1mΩ
Crimp terminal
---Wrie gauge	0.14-4.0mm²
---AWG	26-12
---Stripping length	7.5mm

Downloads

HEE-046-MC-Datasheet

Additional Information

Device	Insert
Type	Series 92EEE (C) \| Insert 46P+E \| Size 48B

Discover the HEE-046-MC(47-92) Insert, featuring a robust 46P+E design for reliable performance at 16A/500V. Crafted from durable polycarbonate and designed for extreme conditions, it ensures maximum safety and longevity with hard-gold and hard-silver plated contacts. Upgrade your electrical systems with this high-quality, efficient solution for superior connectivity.
