HEEE-040-FC

Name: HEEE-040-FC - Communica [Part No: HEEE-040-FC]
Brand: Wain
SKU: HEEE-040-FC
Price: 307.80 ZAR
Availability: InStock

SKU: HEEE-040-FC

BRAND: Wain

R 353.97_{(inc VAT)}
R 307.80_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over ZAR 1,000.00

Collections: Connectors

Type: Power Connectors

Category: Heavy Duty Power Connector Inserts & Modules

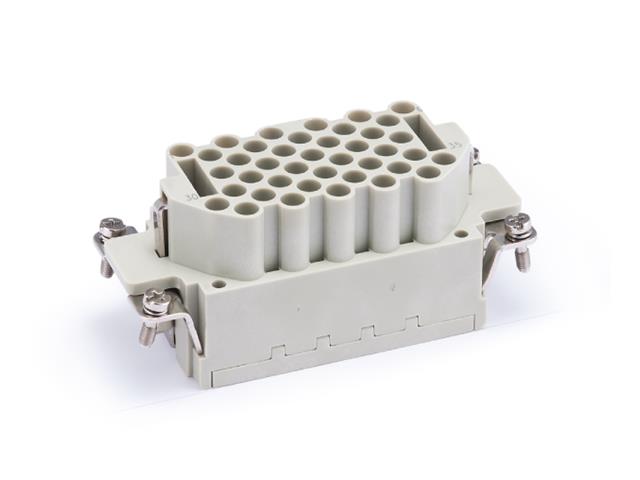

Series 40EEE (C) Insert 40P+E - Size 16B - Female Crimp Termination 16A/500V = 09320403101

Series 40EEE (C) Insert 40P+E

Specifications

Product parameters

Inserts
Number of contacts	40+PE
Electrical data acc. to EN 61 984
---Rated current	16A
---Rated voltage	500V
---Rated impulse voltage	6kV
---Pollution degree	3
---Pollution degree 2 also	16A 830V 8kV 2
Rated voltage acc. to UL	600V
Insulation resistance	≥10¹⁰Ω
Material	polycarbonate
Limiting temperatures	-40℃...+125℃
Flammability acc. to UL 94	V0
Mechanical working life(mating cycles)	≥500
Contacts
Material	copper alloy
Surface	hard-gold plated
Surface	hard-silver plated
Contact resistance	≤1mΩ
Crimp terminal
---Wrie gauge	0.14-4.0mm²
---AWG	26-12
---Stripping length	7.5mm

Additional Information

Device	Insert
Type	Series 40EEE (C) \| 40P+E

Upgrade your electrical connections with the HEEE-040-FC Series 40EEE Insert. Designed for 16A/500V applications, this durable female crimp termination ensures reliable performance and safety. With superior insulation resistance and a robust temperature range, it's perfect for demanding environments. Trust in its long-lasting quality for seamless connectivity.
