HEEE-064-FC

Name: HEEE-064-FC - Communica [Part No: HEEE-064-FC]
Brand: Wain
SKU: HEEE-064-FC
Price: 335.88 ZAR
Availability: InStock

SKU: HEEE-064-FC

BRAND: Wain

R 386.26_{(inc VAT)}
R 335.88_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over ZAR 1,000.00

Collections: Connectors

Type: Power Connectors

Category: Heavy Duty Power Connector Inserts & Modules

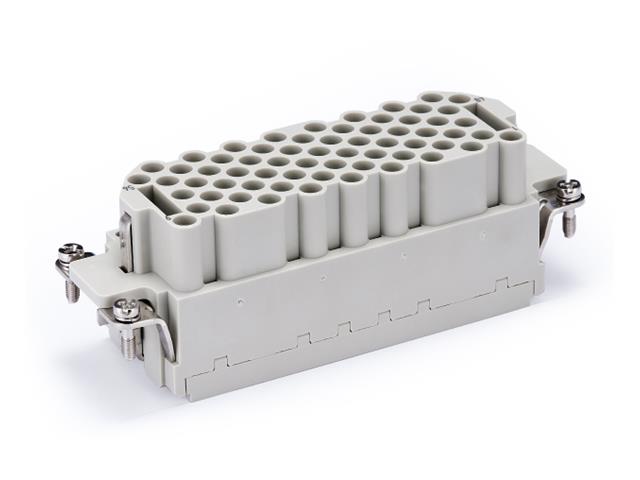

Series 64EEE (C) Insert 64P+E - Size 16B - Female Crimp Termination 16A/500V = 09320643101

Series 64EEE (C) Insert 64P+E

Specifications

Product parameters

Inserts
Number of contacts	64+PE
Electrical data acc. to EN 61 984
---Rated current	16A
---Rated voltage	500V
---Rated impulse voltage	6kV
---Pollution degree	3
---Pollution degree 2 also	16A 830V 8kV 2
Rated voltage acc. to UL	600V
Insulation resistance	≥10¹⁰Ω
Material	polycarbonate
Limiting temperatures	-40℃...+125℃
Flammability acc. to UL 94	V0
Mechanical working life(mating cycles)	≥500
Contacts
Material	copper alloy
Surface	hard-gold plated
Surface	hard-silver plated
Contact resistance	≤1mΩ
Crimp terminal
---Wrie gauge	0.14-4.0mm²
---AWG	26-12
---Stripping length	7.5mm

Downloads

HEE-064-FC-Datasheet

Additional Information

Device	Insert
Type	Series 64EEE (C) \| 64P+E \| Size 16B

Discover the HEEE-064-FC Series 64EEE (C) Insert, designed for reliable performance with 64 contacts and a robust 16A/500V capacity. Its durable polycarbonate construction and hard-gold plated contacts ensure superior conductivity and longevity, making it ideal for demanding applications. Upgrade your electrical connections with this high-quality, efficient solution today!
