HEEE-064-MC

SKU: HEEE-064-MC

BRAND: Wain

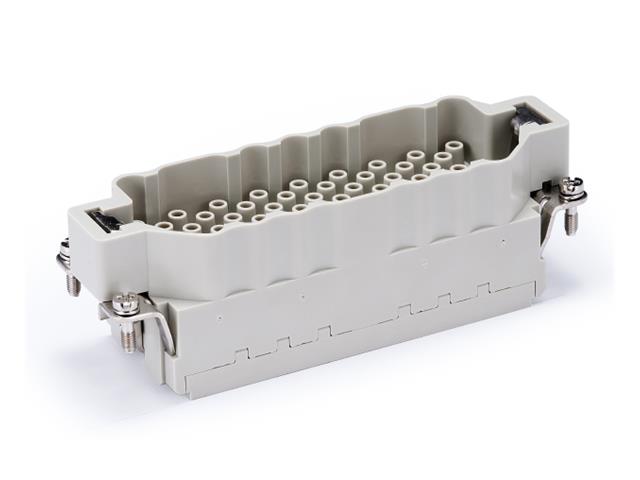

Series 64EEE (C) Insert 64P+E - Size 16B - Male Crimp Termination 16A/500V = 09320643001

Series 64EEE (C) Insert 64P+E

Specifications

Product parameters

Inserts
Number of contacts 64+PE
Electrical data acc. to EN 61 984
---Rated current 16A
---Rated voltage  500V
---Rated impulse voltage 6kV
---Pollution degree 3
---Pollution degree 2 also 16A 830V 8kV 2
Rated voltage acc. to UL 600V
Insulation resistance ≥1010Ω
Material polycarbonate
Limiting temperatures -40℃...+125℃
Flammability acc. to UL 94 V0
Mechanical working life(mating cycles) ≥500
Contacts
Material copper alloy
Surface hard-gold plated
hard-silver plated
Contact resistance ≤1mΩ
Crimp terminal
---Wrie gauge 0.14-4.0mm2
---AWG 26-12
---Stripping length 7.5mm

Downloads

Additional Information

Device Insert
Type Series 64EEE (C) | 64P+E | Size 16B
