SKU: HF115F-005-1ZS3A

BRAND: Hongfa

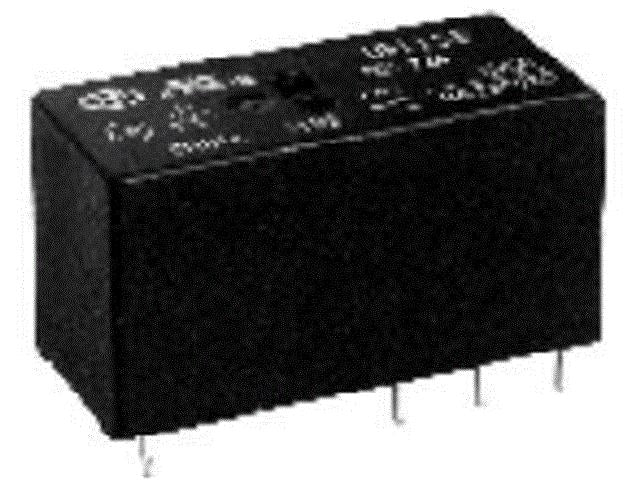

High Power Mini Sealed Lo Profile Relay Form 1U (1c/o) 5mm Contact Spacing 5VDC 62 Ohm Coil 16A 250VAC (440VAC/300VDC Max.)

High Power Mini Sealed Lo Profile Relay


Product Technical Specifications

Part Status Active
Automotive No
Contact Arrangement SPDT
Contact Form 1 Form C
DC Coil Voltage (V) 5
Coil Current (mA) 80.65
Coil Resistance (Ohm) 62
Insulation Resistance (MOhm) 1000
Maximum Contact Resistance (mOhm) 100
Maximum Pick-Up Voltage 3.5VDC
Minimum Dropout Voltage 0.5VDC
Maximum AC Switching Voltage (V) 440
Maximum DC Switching Voltage (V) 300
Maximum Switching Current (A) 16
Maximum Switching Power 4kVA
Operate Time (ms) 15
Release Time (ms) 8
Electrical Life (Operations) 75000
Mechanical Life (Operations) 10000000
LED Indicator No
Push to Test Button No
Coil Suppression Diode No
Relay Construction Non-Latching
Mounting Through Hole
Termination Style PC Pin
Number of Terminals 8
Minimum Operating Temperature (°C) -40
Maximum Operating Temperature (°C) 85
Package Type DIP
Product Weight (g) 13.5
Product Length (mm) 29
Product Depth (mm) 12.7
Product Height (mm) 15.7

Additional Information

Device Relay
