HF3FA-024-HSTF(136)

Name: HF3FA-024-HSTF(136) - Communica [Part No: HF3FA-024-HSTF(136)]
Brand: Hongfa
SKU: HF3FA-024-HSTF(136)
Price: 15.45 ZAR
Availability: InStock

SKU: HF3FA-024-HSTF(136)

BRAND: Hongfa

R 17.77_{(inc VAT)}
R 15.45_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over R1,000.00

Collections: Electromechanical

Type: Relays

Category: Power Relays

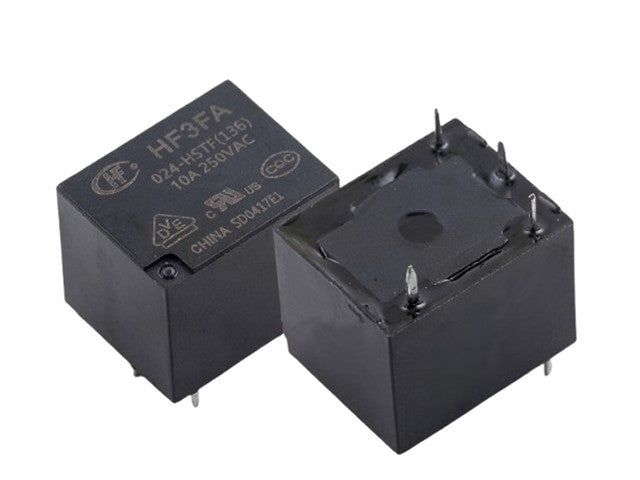

High Power Sub-Mini "Sugar Cube" Sealed Relay Form 1A (1n/o) 24VDC 1600 Ohm Coil 10A 250VAC (15A Maximum) (277VAC/28VDC Max.) - Class F Insulation

Sub-Mini "Sugar Cube" Sealed Relay

Specifications

Contact Arrangement	1 Form A (SPST-NO)
Contact Rating	10 A at 250 VAC / 28 VDC (15 A Max Peak)
Maximum Switching Voltage	277 VAC / 30 VDC
Coil Voltage	24 VDC
Coil Resistance	1600 Ω ±10%
Coil Power Consumption	Approx. 360 mW
Surge Withstand Voltage	Up to 1500 V (Meets FCC Part 68)
Mounting Type	Through Hole (THT / Standard PCB Layout)
Terminals	4-Pin Layout

Additional Information

Device

Relay
