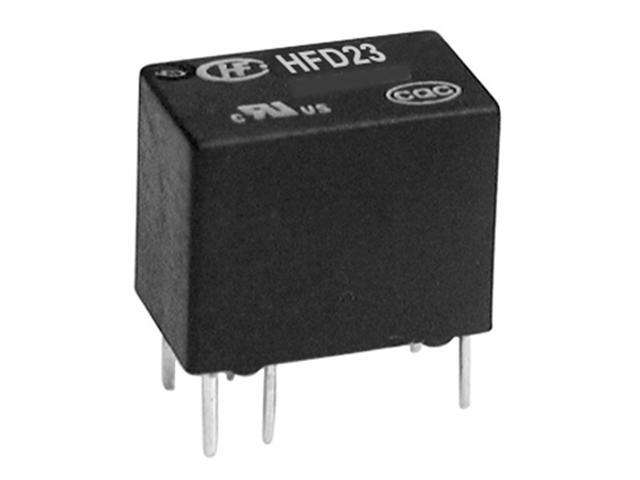

HFD23-009-1ZS

Name: HFD23-009-1ZS - Communica [Part No: HFD23-009-1ZS]
Brand: Hongfa
SKU: HFD23-009-1ZS
Price: 23.70 ZAR
Availability: InStock

SKU: HFD23-009-1ZS

BRAND: Hongfa

R 27.26_{(inc VAT)}
R 23.70_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over ZAR 1,000.00

Collections: Electromechanical

Type: Relays

Category: Low Signal PCB Relays

Subminiature Signal Relay, Form 1C, VCoil= 9V DC, IMax Switching= 2A , RCoil= 540Ω, PCB, in Vertical Case

Overview

Features

Specification

Sensitive Coil

Model	HFD23-009-1ZS
Brand	Hongfa
Contact Form	Form 1C
Size Category	Submini
Size	12.5x7.5x10mm
Termination	PCB
Coil Rated Voltage	9V
AC/DC Voltage	DC
Max. Switching Current	2A
Electrical Rating	0.5A 125VAC \| 1A 30VDC
Coil Power	150mW Power
Coil Resistance	540Ω
Isolation Voltage	1KV
Approvals	UL/CUL
Contact Material	AgNi + Au plated
No. of Pins	6 Pin(s)
No. of Poles	1 Pole(s)

Downloads

Datasheet Download

Discover the HFD23-009-1ZS Subminiature Signal Relay, designed for efficient performance with a 9V DC coil and a max switching current of 2A. Its compact size ensures seamless integration into your PCB projects, while UL/CUL approvals guarantee safety and reliability. Enhance your circuit design with this high-quality relay that combines sensitivity and power in one robust solution.
