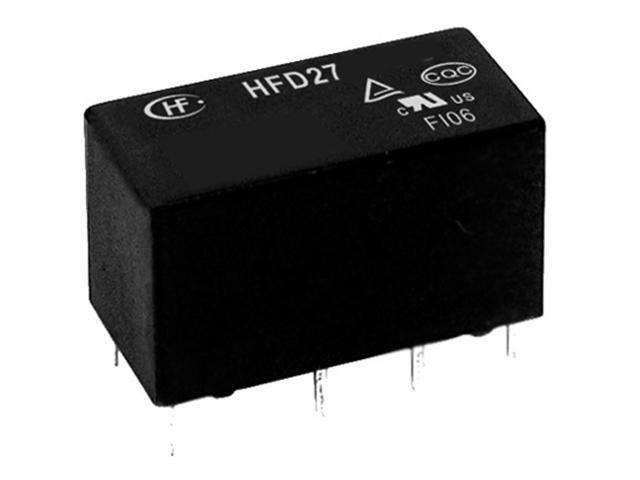

HFD27-024-S

SKU: HFD27-024-S

BRAND: Hongfa


Subminiature Signal Relay, Form 2C, VCoil= 24V DC, IMax Switching= 2A , RCoil= 2.88kΩ, PCB, in Vertical Case

Overview

Features

  • Sensitive Coil

    Specification

    Model : HFD27-024-S
    Contact Form : Form 2C
    Size Category : Submini
    Size : 20.2x10x11.5mm
    Termination : PCB
    Coil Rated Voltage : 24V
    AC/DC Voltage : DC
    Max. Switching Current : 2A
    Electrical Rating : 1A 125VAC | 2A 30VDC
    Coil Power : 200mW Power
    Coil Resistance : 2.88kO
    Isolation Voltage : 1K5V
    Approvals : UL/CUL/TUV
    Contact Material : AgNi + Au plated
    No. of Pins : 8 Pin(s)
    No. of Poles : 2 Pole(s)
