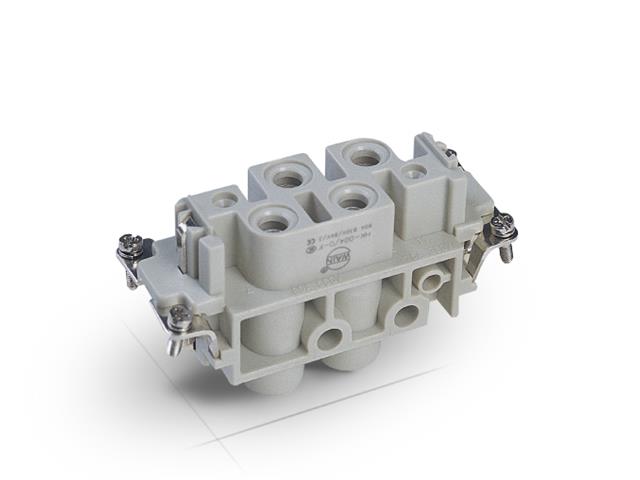

Series K4/2 Insert 6P (4P/2P+E) - Size 16B - Female Screw Termination 4@ 80A/830V - 2@16A/400V = 09380062701
Series K4/2 Insert 6P (4P/2P+E)
Specifications
Product parameters
| Inserts |
| Number of contacts |
4/2+PE |
| Electrical data acc. to EN 61 984 |
|
| Power area |
|
| ---Rated current |
80A |
| ---Rated voltage |
830V |
| ---Rated impulse voltage |
8kV |
| ---Pollution degree |
3 |
| ---Pollution degree 2 also |
80A 1000V 8kV 2 |
| Signal area |
|
| ---Rated current |
16A |
| ---Rated voltage |
400V |
| ---Rated impulse voltage |
6kV |
| ---Pollution degree |
3 |
| ---Pollution degree 2 also |
16A 400/690V 6kV 2 |
| Rated voltage acc. to UL |
600/300V |
| Insulation resistance |
≥1010Ω |
| Material |
polycarbonate |
| Limiting temperatures |
-40℃...+125℃ |
| Flammability acc. to UL 94 |
V0 |
| Mechanical working life(mating cycles) |
≥500 |
| Contacts |
| Power contacts |
|
| ---Material |
copper alloy |
| ---Surface |
hard-silver plated |
| ---Contact resistance |
≤0.3mΩ |
| ---Screw terminal |
|
| ------geometric wire gauge |
1.5-16mm² |
| ------AWG |
16-6 |
| ---Tightening tourque |
|
| ------mm² |
| mm² |
1.5 |
2.5 |
4 |
6 |
10 |
16 |
| N.m |
1.2 |
2 |
3 |
3 |
3 |
3 |
|
| ------N.m |
| ---Stripping length |
14mm |
| Signal contacts |
|
| ---Material |
copper alloy |
| ---Surface |
hard-silver plated |
| ---Contact resistance |
≤1mΩ |
| ---Screw terminal |
|
| ------mm² |
0.5-2.5mm² |
| ------AWG |
20-14 |
| ---Tightening tourque |
0.5Nm |
| ---Stripping length |
7.5mm |
Downloads
Additional Information
| Device |
Insert |
| Type |
Series K4/2 | 6P (4P/2P+E) | Size 16B |
Upgrade your electrical connections with the HK-004/2-F Series K4/2 Insert. Designed for durability and efficiency, this female screw termination supports high currents of 80A at 830V and 16A at 400V, ensuring reliable performance in demanding environments. With a robust polycarbonate construction and superior contact resistance, it’s perfect for both power and signal applications. Experience peace of mind with this essential component for your electrical systems.
