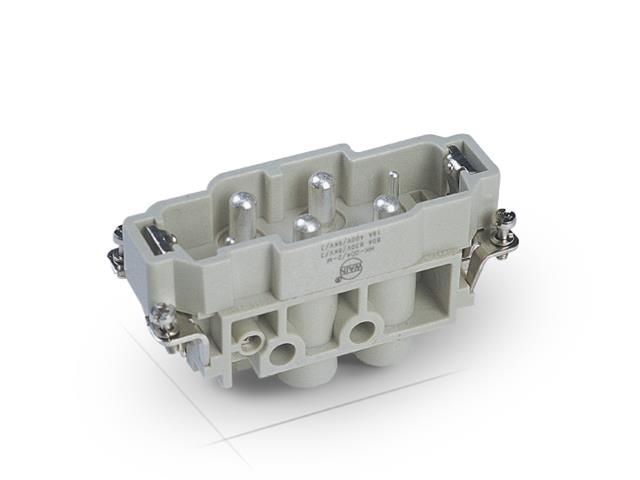

Series K4/2 Insert 6P (4P/2P+E) - Size 16B - Male Screw Termination 4@ 80A/830V - 2@16A/400V = 09380062601
Series K4/2 Insert 6P (4P/2P+E)
Specifications
Product parameters
| Inserts |
| Number of contacts |
4/2+PE |
| Electrical data acc. to EN 61 984 |
|
| Power area |
|
| ---Rated current |
80A |
| ---Rated voltage |
830V |
| ---Rated impulse voltage |
8kV |
| ---Pollution degree |
3 |
| ---Pollution degree 2 also |
80A 1000V 8kV 2 |
| Signal area |
|
| ---Rated current |
16A |
| ---Rated voltage |
400V |
| ---Rated impulse voltage |
6kV |
| ---Pollution degree |
3 |
| ---Pollution degree 2 also |
16A 400/690V 6kV 2 |
| Rated voltage acc. to UL |
600/300V |
| Insulation resistance |
≥1010Ω |
| Material |
polycarbonate |
| Limiting temperatures |
-40℃...+125℃ |
| Flammability acc. to UL 94 |
V0 |
| Mechanical working life(mating cycles) |
≥500 |
| Contacts |
| Power contacts |
|
| ---Material |
copper alloy |
| ---Surface |
hard-silver plated |
| ---Contact resistance |
≤0.3mΩ |
| ---Screw terminal |
|
| ------geometric wire gauge |
1.5-16mm² |
| ------AWG |
16-6 |
| ---Tightening tourque |
|
| ------mm² |
| mm² |
1.5 |
2.5 |
4 |
6 |
10 |
16 |
| N.m |
1.2 |
2 |
3 |
3 |
3 |
3 |
|
| ------N.m |
| ---Stripping length |
14mm |
| Signal contacts |
|
| ---Material |
copper alloy |
| ---Surface |
hard-silver plated |
| ---Contact resistance |
≤1mΩ |
| ---Screw terminal |
|
| ------mm² |
0.5-2.5mm² |
| ------AWG |
20-14 |
| ---Tightening tourque |
0.5Nm |
| ---Stripping length |
7.5mm |
Downloads
Additional Information
| Device |
Insert |
| Type |
Series K4/2 | 6P (4P/2P+E) | Size 16B |
Enhance your electrical connections with the HK-004/2-M Series K4/2 Insert. Designed for reliability, this 6P male screw termination supports high current applications with a rated capacity of 80A at 830V, ensuring optimal performance and safety. Its durable polycarbonate build withstands extreme temperatures and flammability standards, making it perfect for demanding environments. Upgrade your installations with this efficient, long-lasting solution today!
