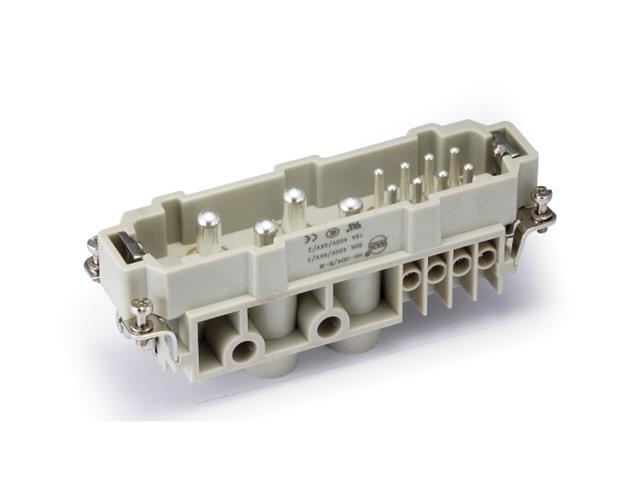

HK-004/8-M
SKU: HK-004/8-M
BRAND: Wain
R 1,262.08 (inc VAT) R 1,097.46 (ex VAT)
🚚
Delivery time: 2-5 working days for South Africa
✓
In stock - Ready for immediate dispatch
Free shipping for orders over ZAR 1,000.00
Series K4/8 Insert 12P (4P/8P+E) - Size 24B - Male Screw Termination 4@ 80A/400V - 8@16A/400V = 09380122601
Series K4/8 Insert 12P (4P/8P+E)
Specifications
Product parameters
Inserts
Number of contacts
4/8+PE
Electrical data acc. to EN 61 984
Power area
---Rated current
80A
---Rated voltage
830V
---Rated impulse voltage
8kV
---Pollution degree
3
Signal area
---Rated current
16A
---Rated voltage
400V
---Rated impulse voltage
6kV
---Pollution degree
3
Rated voltage acc. to UL
600/600V
Insulation resistance
≥1010 Ω
Material
polycarbonate
Limiting temperatures
-40℃...+125℃
Flammability acc. to UL 94
V0
Mechanical working life(mating cycles)
≥500
Contacts
Power contacts
---Material
copper alloy
---Surface
hard-silver plated
---Contact resistance
≤0.3mΩ
---Screw terminal
------geometric wire gauge
1.5-16mm²
------AWG
16-6
---Tightening tourque
------mm²
mm²
1.5
2.5
4
6
10
16
N.m
1.2
2
3
3
3
3
------N.m
---Stripping length
14mm
Signal contacts
---Material
copper alloy
---Surface
hard-silver plated
---Contact resistance
≤1mΩ
---Screw terminal
------mm²
0.5-2.5mm²
------AWG
20-14
---Tightening tourque
0.5Nm
---Stripping length
7.5mm
Downloads
Additional Information
Device
Insert
Type
Series K4/8 | 12P (4P/8P+E) | Size 24B
Discover the HK-004/8-M Series K4/8 Insert, designed for reliable performance with 4P/8P+E connections. This durable male screw termination supports high power applications up to 80A at 400V, ensuring safety and efficiency. Perfect for industrial use, its robust construction withstands extreme temperatures and offers a long mechanical lifespan. Upgrade your electrical system with this high-quality insert today!
