HKD 2.8IN TFT LCD TOUCH SHIELD

Name: HKD 2.8IN TFT LCD TOUCH SHIELD - Communica [Part No: HKD 2.8IN TFT LCD TOUCH SHIELD]
Brand: Communica
SKU: HKD 2.8IN TFT LCD TOUCH SHIELD
Price: 247.83 ZAR
Availability: OutOfStock

SKU: HKD 2.8IN TFT LCD TOUCH SHIELD

BRAND: Communica

Sold Out
R 285.00_{(inc VAT)}
R 247.83_{(ex VAT)}

Collections: IoT, Internet of things

Type: Displays

Category: Iot, TFT LCD Touch Shield

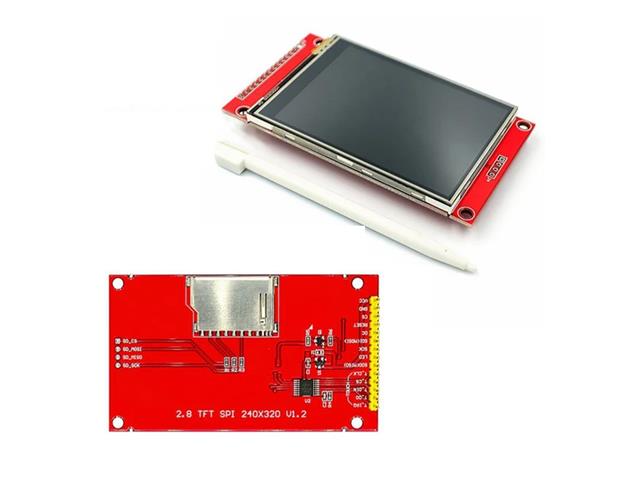

2,8IN TFT LCD Touch Shield with Micro SD Socket. 240X320. Works with UNO and MEGA-Not Leonardo

2,8IN TFT LCD Touch Shield

Features

Support Arduino various MCU in-line without any wiring
Integrated voltage regulator IC, support 5V or 3.3V power supply
Onboard level shifting scheme, truly compatible with 5V/3.3V IO level.
Support a variety of microcontroller IO connections
Integrated SD card expansion circuit,
Reserve SPI FLASH font circuit to facilitate extended application

Specifications

2.8 inch LCD TFT display
Bright, 4 white-LED backlight
Colorful, 18-bit 262,000 different shades
4-wire resistive touchscreen 240 x 320 pixels with individual pixel control
No wiring, no soldering.
Simply plug it in and load library
On-board 3.3V 300mA LDO regulator
5V compatible, use with 3.3V or 5V logic
Support 2GB micro SD TF card
Driver IC: ILI9341
Size : 7.8 x 5.3cm

Additional Information

Device	Touch Shield
Type	2,8IN \| TFT \| LCD
