HKD 3S LITH BATT CHARGE/PROT 25A - Power, Battery & Solar -

HKD 3S LITH BATT CHARGE/PROT 25A

Name: HKD 3S LITH BATT CHARGE/PROT 25A - Communica [Part No: HKD 3S LITH BATT CHARGE/PROT 25A]
Brand: Communica
SKU: HKD 3S LITH BATT CHARGE/PROT 25A
Price: 42.61 ZAR
Availability: InStock

SKU: HKD 3S LITH BATT CHARGE/PROT 25A

BRAND: Communica

In Stock
R 49.00_{(inc VAT)}
R 42.61_{(ex VAT)}

Collections: IoT, Internet of things

Type: Power, Battery & Solar

Category: Battery Charger Modules, Iot

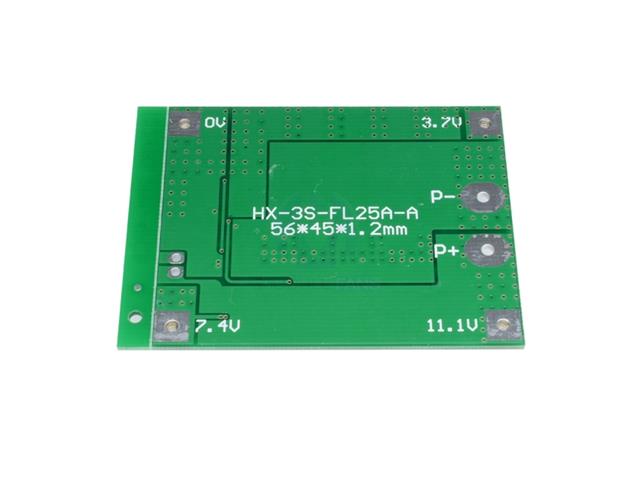

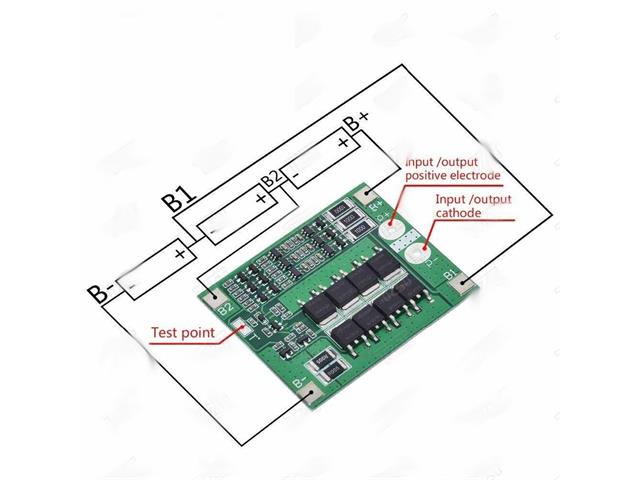

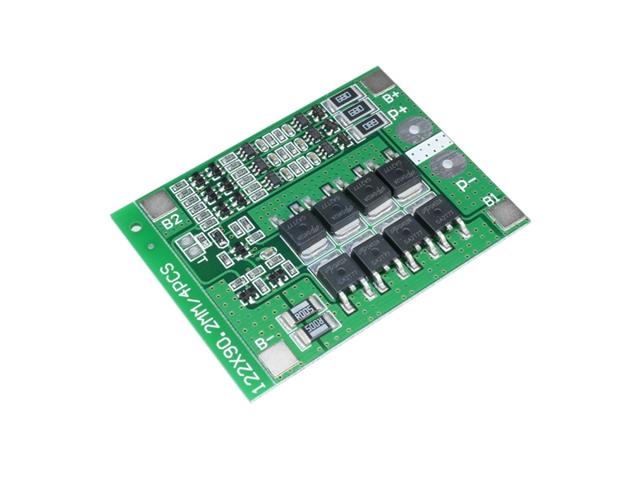

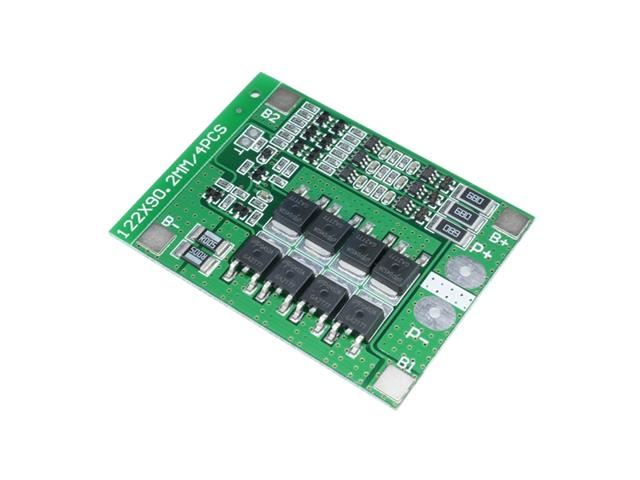

25A Battery Charger with Protection used for 3-CELL 18650 Rechargeable Batteries. The Circuit has a Separate Charge Function for each Cell, Automatic Shutdown When Full, Short-circuit Protection, Over-Voltage and Under-voltage.

25A Battery Charger with Protection

Specifications

Size: about 56mm x 45mm x 1.2mm
Over voltage range: 4.25~4.35V ± 0.05V
Over discharge voltage range: 2.3~3.0V ± 0.05V
Maximum operating current: 0~25A
Maximum transient current: 34~40A
Quiescent current: less than 30uA
Internal resistance: less than 100Ω
Working temperature: -40℃ ~ +50℃
Storage condition: -40℃ ~ +80℃
Effective life: more than30000h
Short circuit protection: Yes, delayed self recovery

Additional Information

Device	Charger with Protection
Type	25A \| Battery
