HKD 4S LITH BATT CHARGE/PROT 15A

Name: HKD 4S LITH BATT CHARGE/PROT 15A - Communica [Part No: HKD 4S LITH BATT CHARGE/PROT 15A]
Brand: Communica
SKU: HKD 4S LITH BATT CHARGE/PROT 15A
Price: 34.78 ZAR
Availability: InStock

SKU: HKD 4S LITH BATT CHARGE/PROT 15A

BRAND: Communica

R 40.00_{(inc VAT)}
R 34.78_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over ZAR 1,000.00

Collections: IoT, Internet of things

Type: Power, Battery & Solar

Category: Battery Charger Modules, Iot

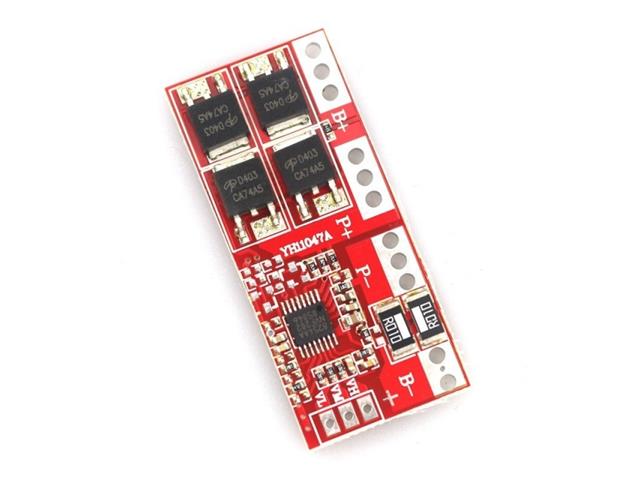

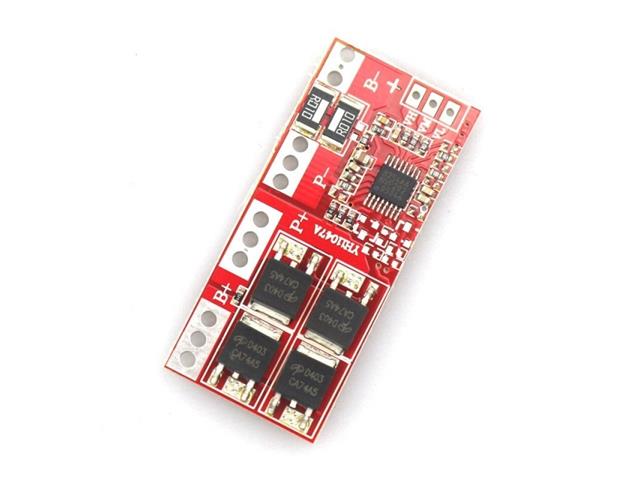

4S 15A (with heatsink) Li-Ion Lithium Battery 18650 Charger Protection Board Module

18650 Charger Protection Board Module

Overview

New masterpiece, 4 on lithium battery protection board, which is suitable for the nominal voltage 14.4V lithium batteries, 14.8V lithium batteries, 16.8V lithium battery group. With the function of automatic activation, automatically cancel the protection conditions after recovery, without charger activation, the use of more convenient.

Specifications

Overcharge detection voltage: 4.25±0.025V
Overcharge Lift the voltage: 4.15±0.05V
Over discharge detection voltage: 2.50±0.08V
Over discharge Lift the voltage: 3.00±0.1V
Overcurrent current: 20-30A
Working current: 15A(Natural cooling 10.A, add heat sink 15A, the maximum instantaneous current 30A)
Operating temperature: -40℃ to 85℃

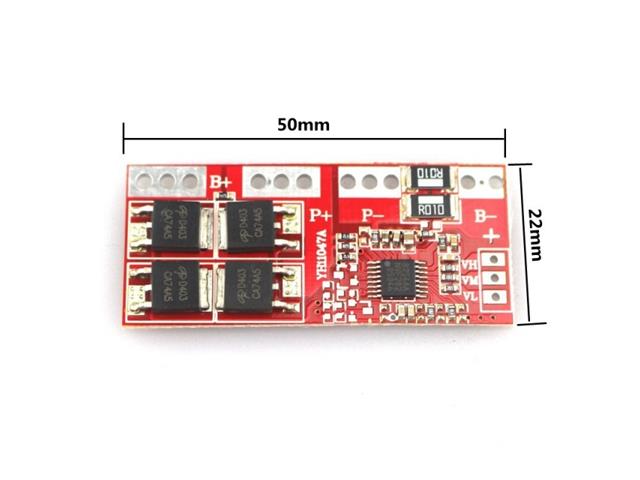

Size: 50*22*4mm

Protections:

Short circuit protection
Overcharge protection
Over-discharge protection
Overcurrent protection

Additional Information

Device	Protection Board Module
Type	18650 \| Charger

Ensure your lithium batteries stay safe and efficient with the HKD 4S 15A Lithium Battery Charger Protection Board. Designed for 14.4V to 16.8V batteries, it features automatic activation and comprehensive protections against overcharge, over-discharge, and short circuits. Upgrade your battery management and enhance performance effortlessly!
