HKD 7S LITH BATT CHARGE/PROT 15A

SKU: HKD 7S LITH BATT CHARGE/PROT 15A

BRAND: Communica

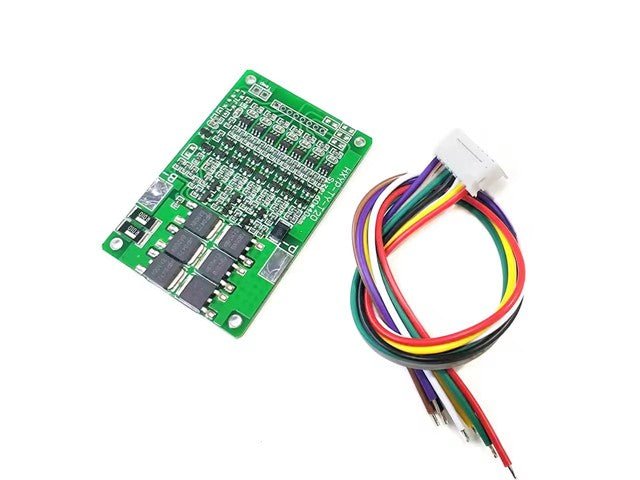

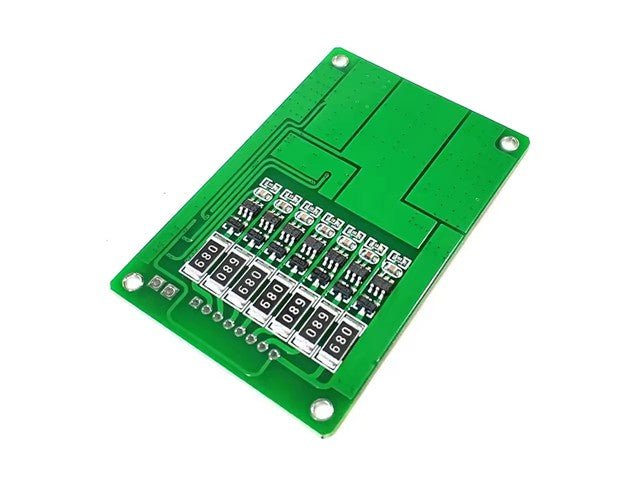

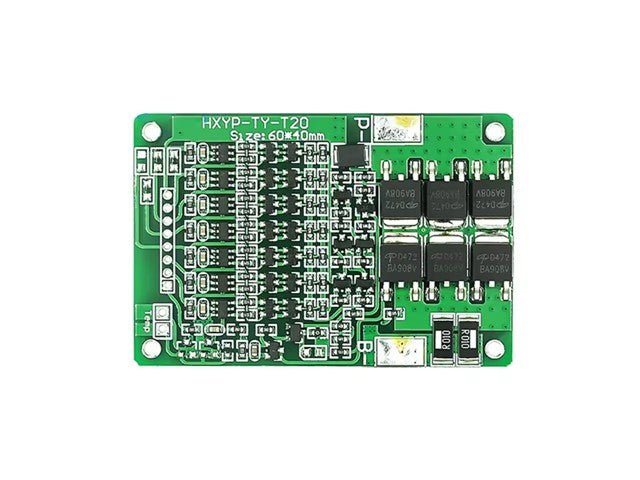

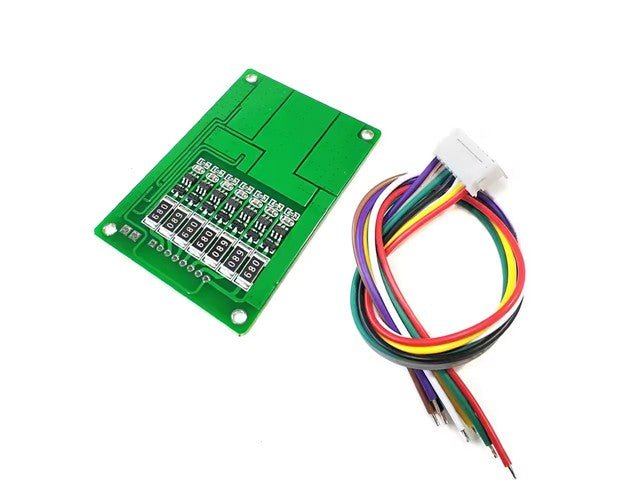

7S 18650 Lithium Ion Battery Protection Board with Balance 15A 29.4V

Battery Protection Board

Features

  • Use high-quality materials for durability
  • Stable performance with balanced charging and discharging protection
  • Beautiful appearance, neatly arranged components
  • Easy to use, the product comes with short circuit protection
  • Widely applicable, suitable for massager battery packs, LED light backup power supplies, 12V electronic products, solar street light battery packs, monitoring backup power supplies, and other products

Specifications

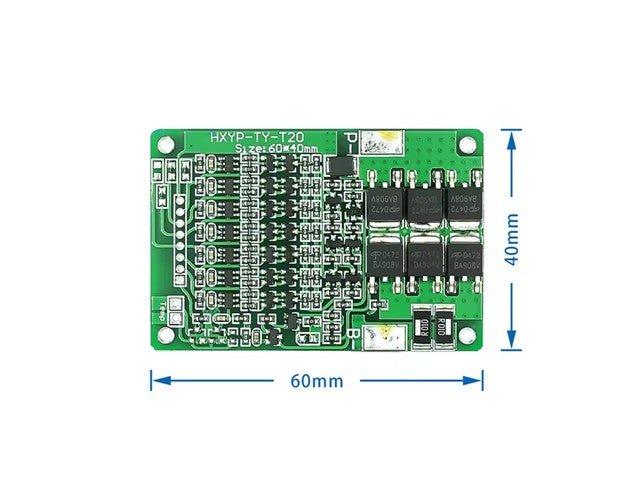

  • Size: 60 * 40 * 3.6mm
  • Overcharge voltage range: 4.25 ± 0.05v
  • Over discharge voltage range: 2.5 ± 0.05v
  • Upper working current: 15A
  • Upper limit instantaneous current: 20A
  • Quiescent current: <30uA
  • Charging voltage: BMS/7S 29.4V
  • Short circuit protection: can be protected, need to charge recovery

Package included:
  • 1 x 18650 Lithium Battery Protection Board

Additional Information

Device Protection Board
Type Battery
