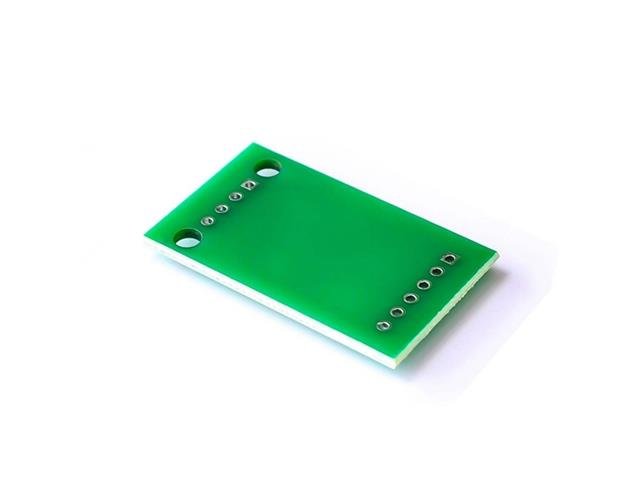

HKD A/D WEIGHING SENSOR CONVERT
SKU: HKD A/D WEIGHING SENSOR CONVERT
BRAND: Communica
R 18.00 (inc VAT) R 15.65 (ex VAT)
🚚
Delivery time: 2-5 working days for South Africa
✓
In stock - Ready for immediate dispatch
Free shipping for orders over ZAR 1,000.00

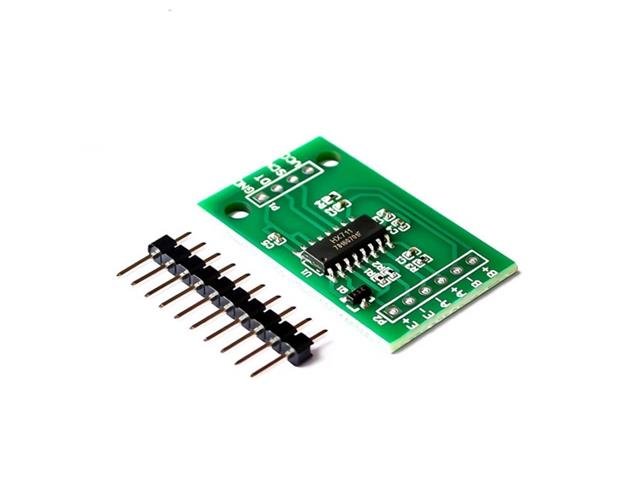

HX711 Dual-Channel Weight Sensor Amplifier 24 Bit A/D Module for Arduino
Dual-Channel Weight Sensor Amplifier
Features
With metal shielding, strong anti-interference, obligate MCU (STC15F104) position, can upgrade secondary development.
Two way can choose differential input
The chip low noise programmable amplifier, optional gain to 32, 64 and 128
The chip voltage stabilizing circuit can be directly to the external sensors and chips inside A/D converter to provide power supply
The chip clock oscillator without any external devices, when necessary, also can use external crystals or clock
Automatic reset circuit
Simple digital control and serial interface communication all control by input pin, chip register without programming
Can choose 10 hz or the output data rate of 80 hz
Synchronization of 50 hz or 60 hz power supply interference suppression
Specifications
Typical working current: < 1.7 mA, power current: < 1 mu A
Working voltage range: 2.6 ~ 5.5 V
Low operating temperature range: - 20 ~ + 85 ℃
Module working voltage: 4.8V to 5.5V

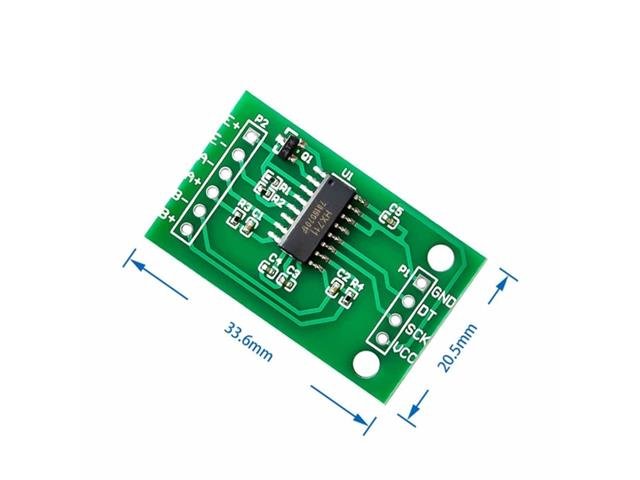

Size: 29*17*4mm
Packing included:
1 x Weighing Sensor AD Module
1 x Metal shield
4 x Pin Header
Additional Information
Upgrade your projects with the HKD A/D Weighing Sensor Convert, featuring a dual-channel HX711 amplifier for precise weight measurement. This easy-to-integrate module offers low noise, strong anti-interference, and a programmable gain of up to 128, making it perfect for Arduino applications. Enjoy reliable performance with a compact design, ideal for enhancing your electronic scales and weight monitoring systems.
