• Industry-leading noise performance through proprietary amplifier and filter design techniques
• Integrated shield greatly reduces capacitive coupling from current conductor to die due to high dV/dt signals, and prevents offset drift in high-side, high voltage applications
• Total output error improvement through gain and offset trim over temperature
• Small package size, with easy mounting capability
• Monolithic Hall IC for high reliability
• Ultra-low power loss: 100 μΩ internal conductor resistance
• Galvanic isolation allows use in economical, high-side current sensing in high voltage systems

Electrical characteristics (X050):

• Operating voltage: 3V - 5 V
• Static output voltage: VCC/2
• Operating current: 13.5 mA (MAX)
• Storage temperature range: -65 °C – 165 °C
• Maximum output current (VIOUT-GND): 3 mA
• Internal bandwidth: 120 KHz
• Detection current range (A): ±50
• Linearity (mV/A): 40
• Working temperature (°C): -40 to 150
• Module size: 37mm x 18mm
• Module weight: 8.8 g

The relationship between voltage output and current input:

VOUT = VOUT(Q) + Vsens x I VOUT(Q) is the quiescent output voltage, which is VCC/2, which is the output voltage when there is no input. Vsens is a sensor-sensitive scale, also known as a coefficient. I is the current flowing from IP+ to IP-.

For example, suppose the sensor model is 050B, VCC is 5V, and I current is 10A, then the output is 5V / 2+40mV/A x10A=2.9V.

Package included:

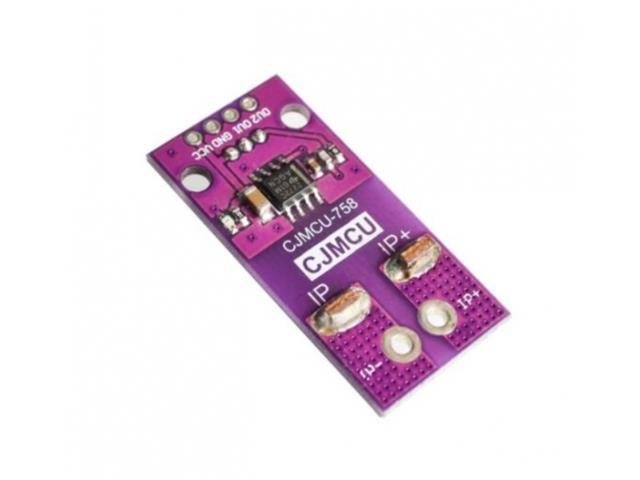

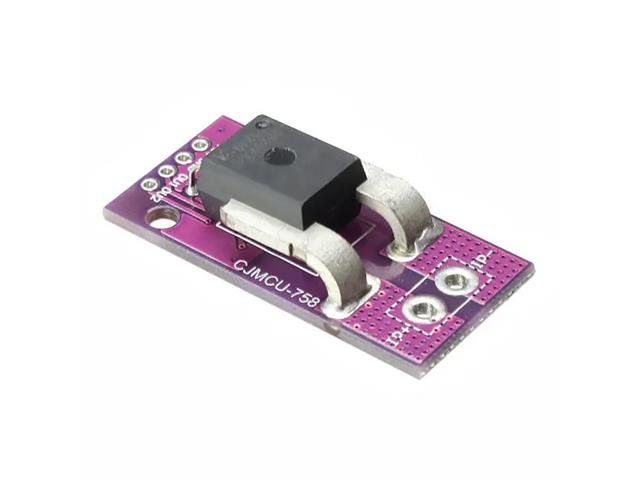

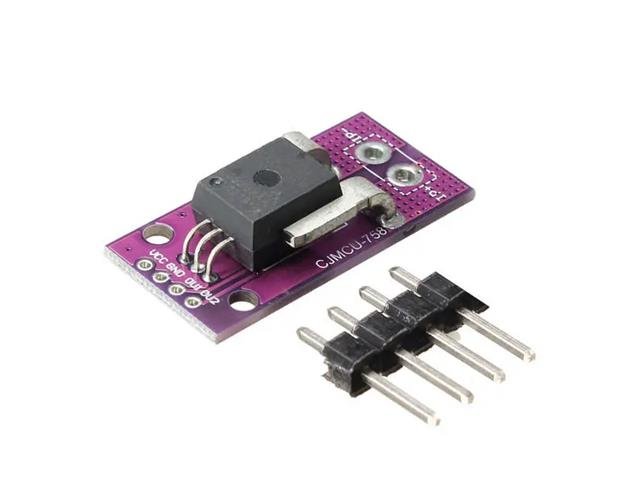

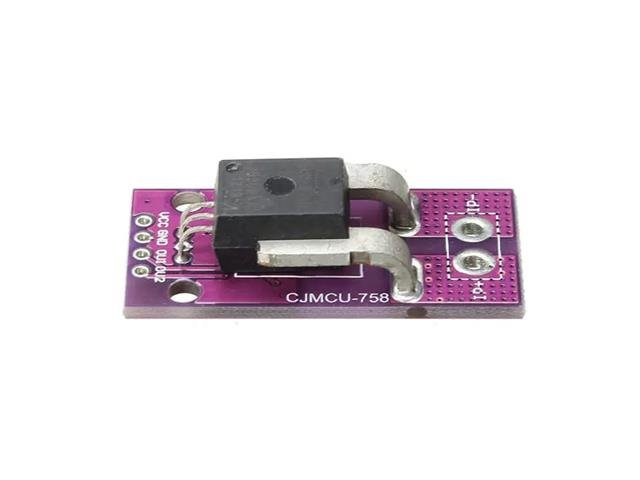

• 1 x Linear Current Sensor Hall Current Module
