The AD8232 ECG sensor is a commercial board used to calculate the electrical movement of the human heart. This action can be chart like an Electrocardiogram and the output of this is an analog reading. Electrocardiograms can be very noisy, so to reduce the noise the AD8232 chip can be used. The working principle of the ECG sensor is like an operational amplifier to help in getting a clear signal from the intervals simply.
The AD8232 sensor is used for signal conditioning in ECG as well as other measurement applications of bio-potential. The main purpose of this chip is to amplify, extract as well as filter bio-potential signals which are small in the noisy conditions like those formed through the replacement of remote electrode as well as motion
Features
Fully integrated single-lead ECG front end
Two or three-electrode configurations
Qualified for automotive application
Fast restore feature improves filter settling
Applications:
Monitoring of remote health
Used in gaming devices
Acquisition of bio-potential signal
Biometrics
Physiology studies
Prototyping of biomedical instruments
Variability of heart rate
Specifications
Operating Voltage : 2.0V – 3.5V (Nominal = 3.3V)
Rated Temp Range : 0-70degree
Working Temp Range: -40-85degree
Common-mode rejection ratio: 80 dB (dc to 60 Hz)
Size: 3.6mm*2.8mm (L*W)
Additional Information
Device
Sensor/Module
Type
AD8232 | ECG | Pulse | Heart | Monitor

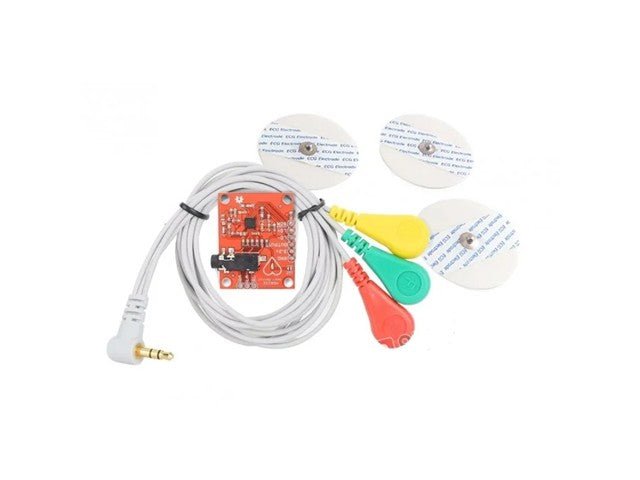

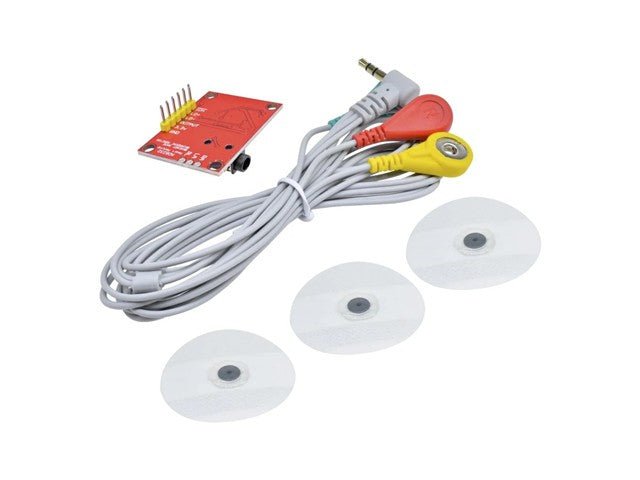

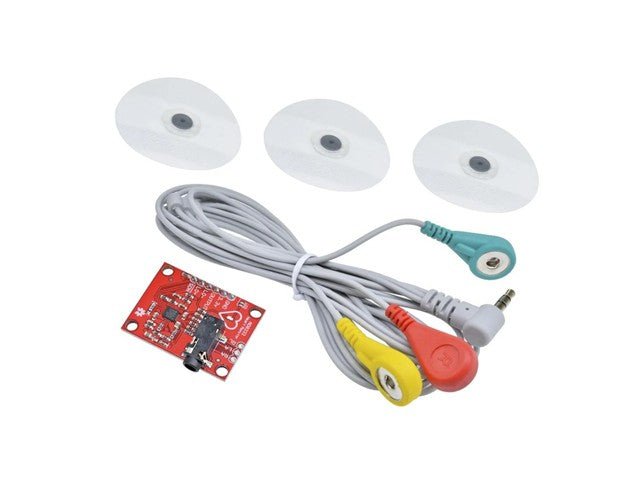

Discover the HKD AD8232 ECG Pulse Heart Sensor, an essential tool for accurate heart monitoring. This compact module delivers clear ECG readings, ideal for health tracking, biometrics, and physiological studies, ensuring reliable performance in various conditions. Enhance your projects with this advanced sensor, designed for precision and ease of use.
