HKD BMP180 BAROMETER I2C

SKU: HKD BMP180 BAROMETER I2C

BRAND: Communica

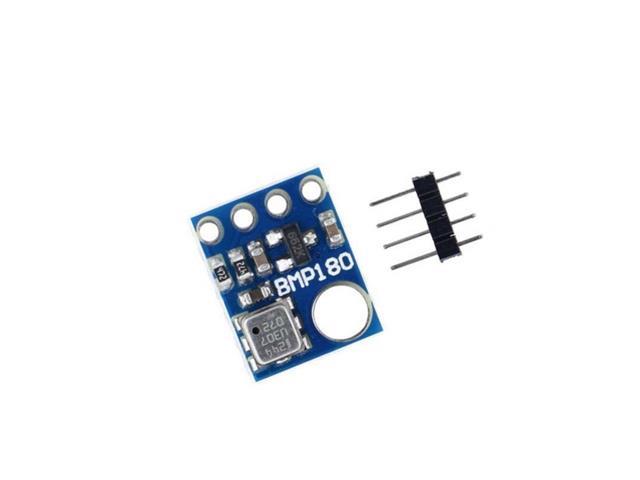

BMP180 I2C Digital Barometric Pressure Sensor Board Module

Digital Barometric Pressure Sensor Board Module

Overview

The BMP180 offers a pressure measuring range of 300 to 1100 hPa with an accuracy down to 0.02 hPa in advanced resolution mode. It’s based on piezo-resistive technology for high accuracy, ruggedness and long term stability. These come factory-calibrated, with the calibration coefficients already stored in ROM. What makes this sensor great is that it is nearly identical to its former rev, the BMP085.

Specifications

  • Size: 13mm x 10mm
  • 1.8V to 3.6V Supply Voltage
  • Max I2C Speed: 3.5Mhz
  • Low power consumption: 0.5uA at 1Hz
  • I2C interface
  • Very low noise: up to 0.02hPa (17cm)
  • Full calibrated
  • Pressure Range: 300hPa to 1100hPa (+9000m to -500m)
  • Package included:

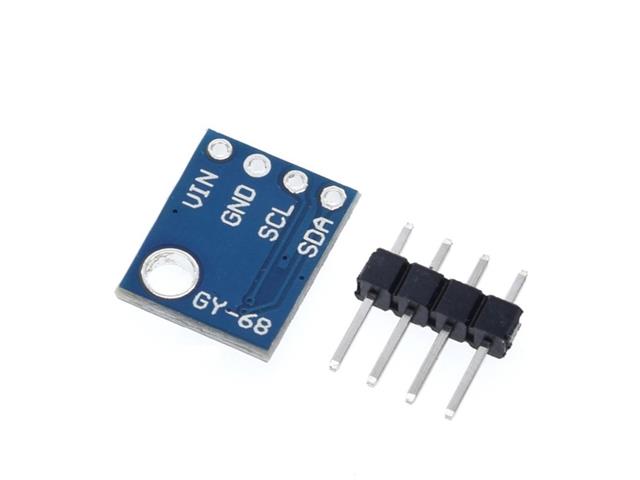

  • 1 x GY-68 BMP180 Sensor Module

Additional Information

Device Board Module
Type Digital | Barometric | Pressure | Sensor
