HKD D2-1 INTEL LINE TRACKING KIT

SKU: HKD D2-1 INTEL LINE TRACKING KIT

BRAND: Communica

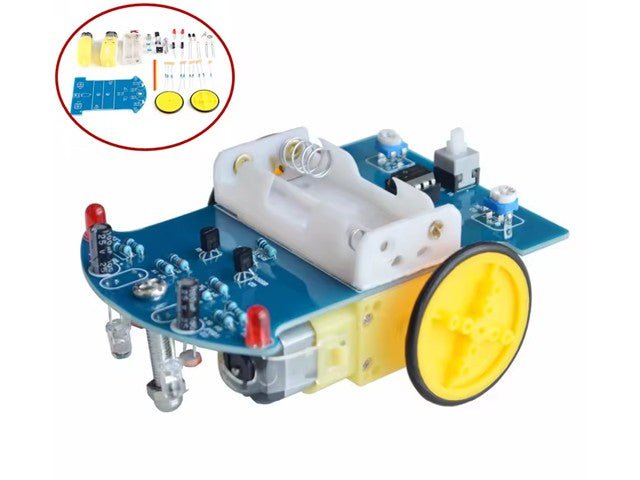

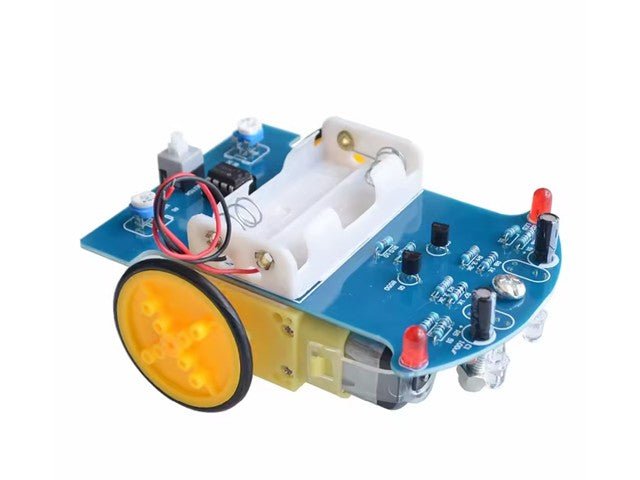

D2-1 Intelligent Tracking Car Kit

D2-1 Intelligent Tracking Car Kit

Specifications

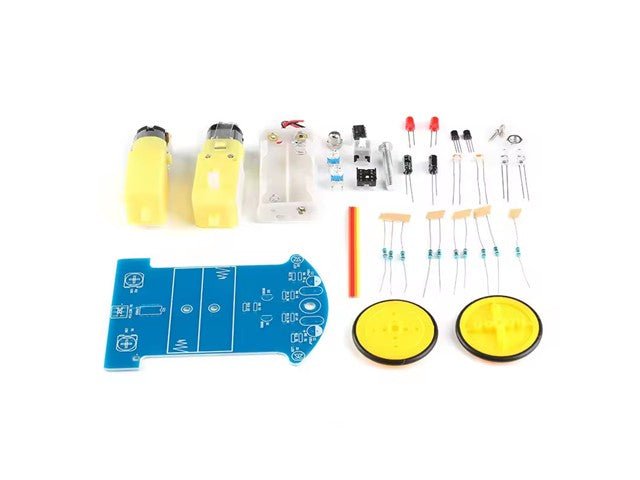

Component Listing

No. Component Name PCB Marker Parameter Quantity
1 LM393 IC1 DIP-8 1
2 IC Socket IC1 DIP-8 1
3 Electrolytic Capacitor C1, C2 100μF 2
4 Potentiometer R1, R2 103 10K 2
5 Metal Film Resistance R5, R6, R11, R12 51Ω 4
6 Metal Film Resistance R7, R8 1K 2
7 Metal Film Resistance R9, R10 100Ω 2
8 Metal Film Resistance R3, R4 3.3K 2
9 Photoresistor R13, R14 CDS5 2
10 Red LED D1, D2 5mm 2
11 White LED D4, D5 5mm 2
12 S8550 Q1, Q2 TO-92 2
13 Self-Locking Switch S1 6*6mm 1

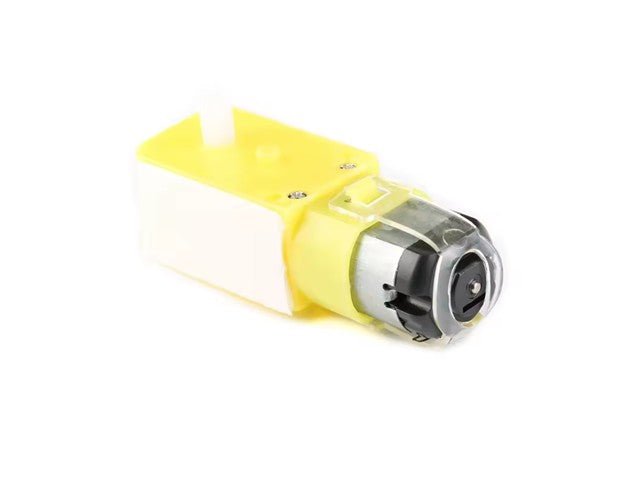

14 DC Motor M1, M2   2
15 Wheel   40mm 2
16 Tires   40mm 2
17 Gaster Screw   M5*20mm 2
18 Gaster Nut   M5 2
19 Gaster Screw Cap   M5 2
20 Cable   6mm 4
21 Battery Case   AA*2 1

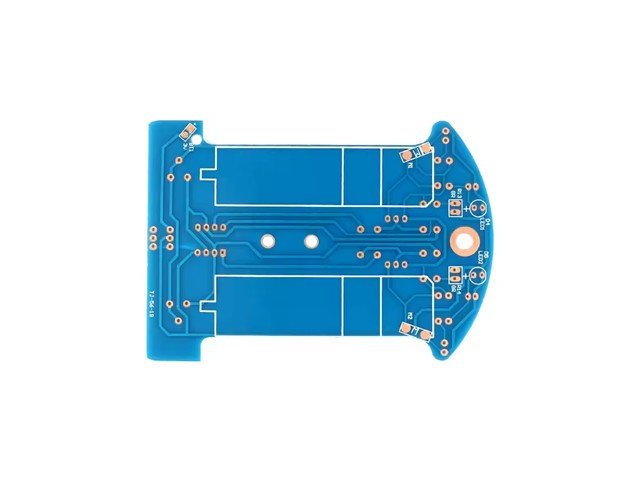

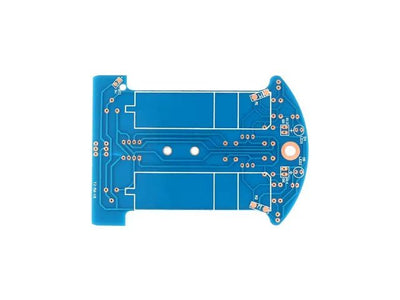

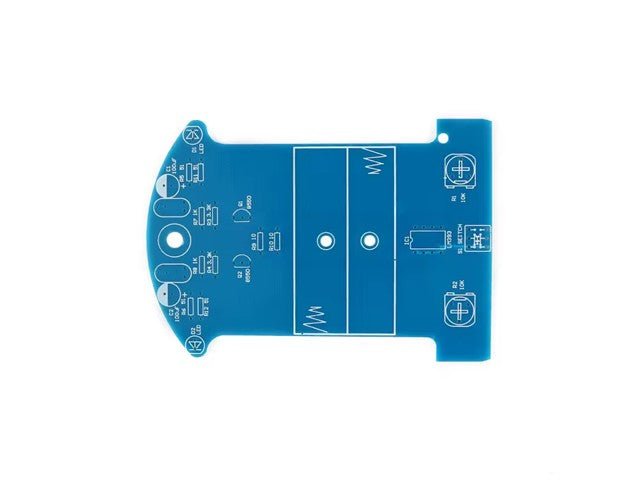

22 PCB D2-1   105721.6mm 1

Additional Information

Device Tracking Car Kit
Type D2-1 Intelligent
