HKD DC/DC BOOST ADJ MOD 5-35V 4A

Name: HKD DC/DC BOOST ADJ MOD 5-35V 4A - Communica [Part No: HKD DC/DC BOOST ADJ MOD 5-35V 4A]
Brand: Communica
SKU: HKD DC/DC BOOST ADJ MOD 5-35V 4A
Price: 28.69 ZAR
Availability: InStock

SKU: HKD DC/DC BOOST ADJ MOD 5-35V 4A

BRAND: Communica

In Stock
R 32.99_{(inc VAT)}
R 28.69_{(ex VAT)}

Collections: IoT, Internet of things

Type: Power, Battery & Solar

Category: DC DC Modules, Iot

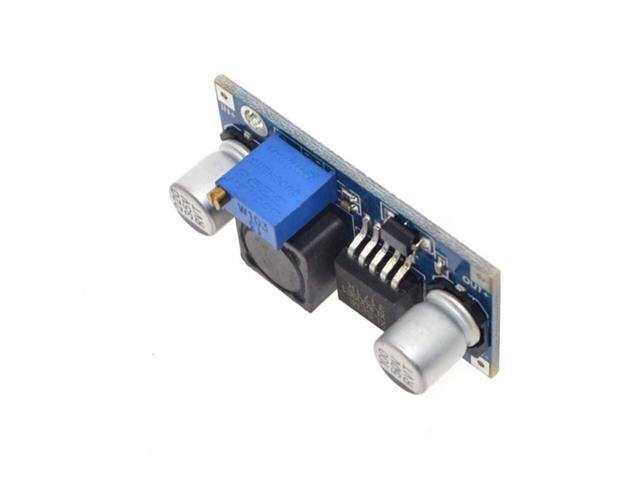

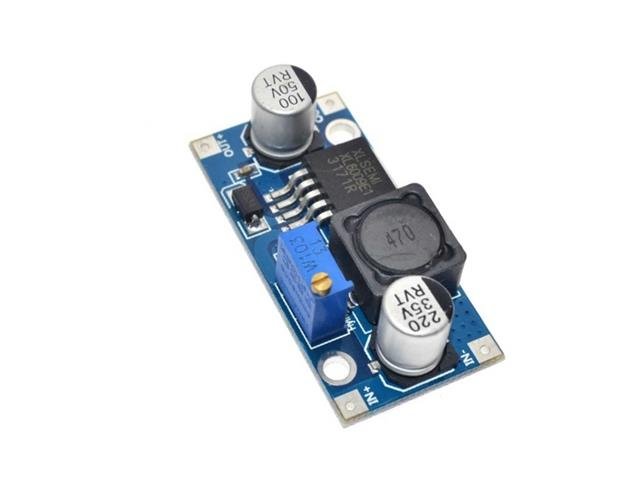

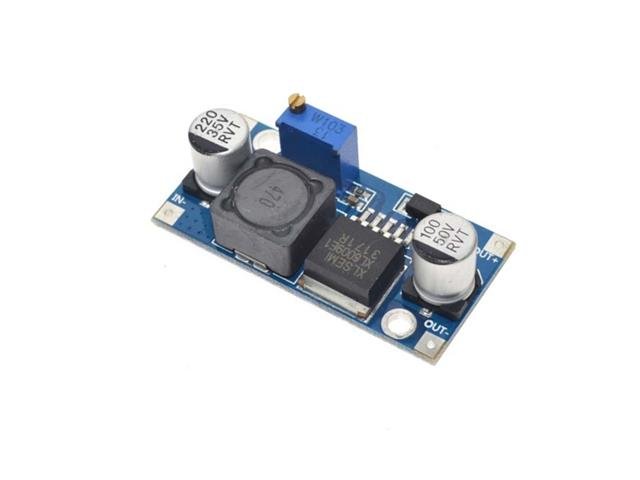

DC/DC XL6009 Step-up DC Boost Adjustable Module, Output Current: Max. 4A, I/P 3V-32V. O/P 5-35V, Operating Temperature: Industrial Grade (-40 to +85°C) (Output Power 18W or Less)

Step-up DC Boost Adjustable Module

Specifications

Modules Nature : Non-isolated step-up (Boost)
Rectification : Non-synchronous rectification
Input Voltage : 3V-32V
Output Voltage : 5V-35V
Input Current : 4A (max), No-load current 18mA
Conversion Efficiency : 94% (highest)
Switching Frequency : 400KHz
Output Ripple : 50mV (max)
Load Regulation : ± 0.5%
Voltage Regulation : ± 0.5%
Operating Temperature : -40 ° C to +85 ° C
Dimension : 47 x 22 x 13 mm
Short Circuit Protection : NONE

Applications:

DIY a mobile power supply
Boost charger
Power supply for electronic equipment

Additional Information

Device	Module
Type	Step-up \| DC Boost \| Adjustable
