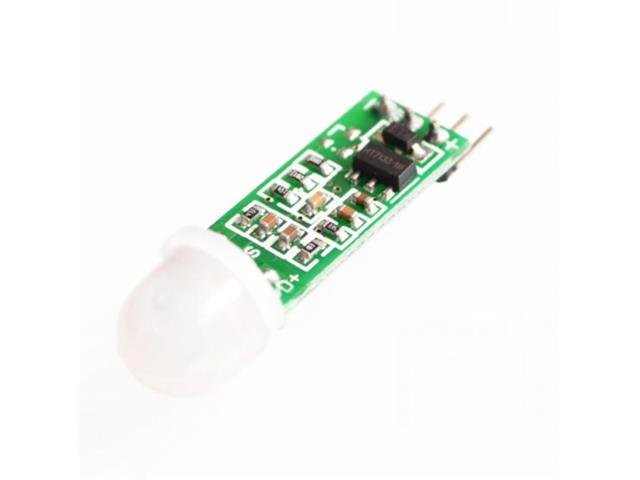

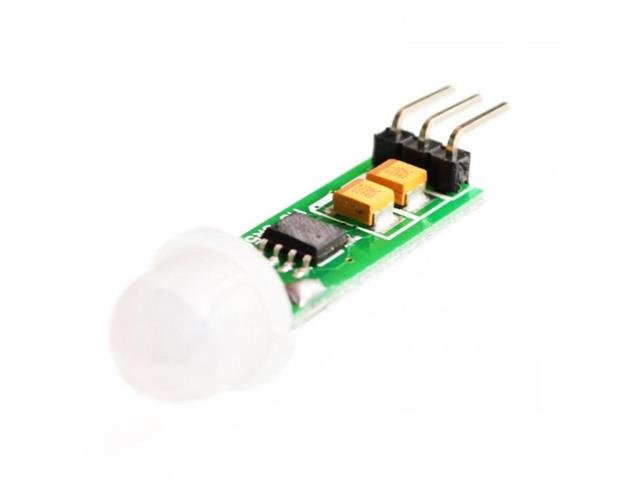

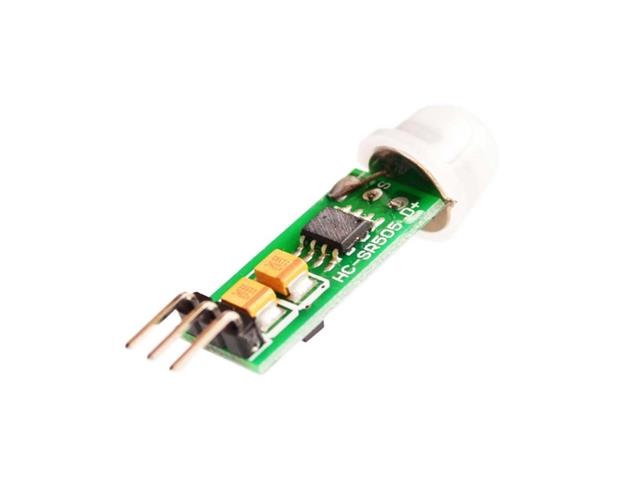

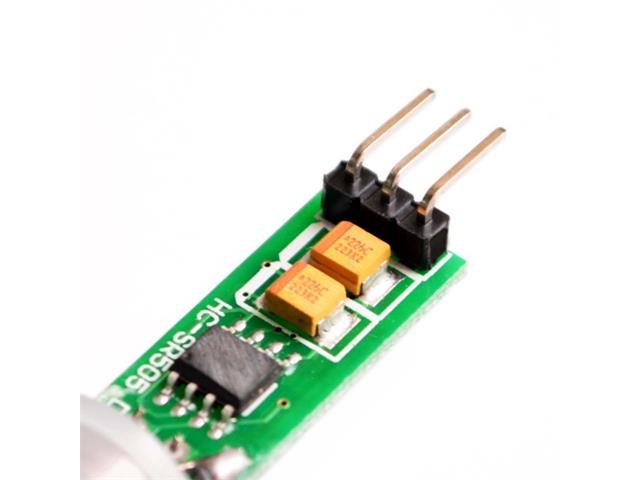

HC-SR505 Mini PIR Motion Sensor is based on infrared technology and it can automatic control by itself with high sensitivity and high reliability. Because of the minimum size and low-power operation mode, it widely used in various of automatic electronic equipment, especially battery-powered automatic products.
Features
Automatic Control
Minimum size
Repeatable Trigger
Wide range of operating voltage
Low-power
Output high signal
Applications :
Body induction lamps
Body induction toys
Security Products
Industrial automation and control
Auto-sensing of electrical equipment
Battery-powered automatic control
Specifications
Operating voltage range : DC4.5-20V
Quiescent Current : <60uA
Level output : Gao 3.3V / Low 0V
Trigger : reusable trigger (default)
Delay Time : The default 8S + -30%
Board Dimensions : 10 x 23mm
Induction angle: <100 degrees cone angle
Sensing distance : 3 meters
Working temperature : -20 to +80 degrees
Sensor Lens Dimensions : Diameter : 10mm
Additional Information
Device
Motion Sensor
Type
Mini | Infrared
Enhance your home automation with the HKD Digital Mini PIR Motion Sensor, designed for high sensitivity and reliable performance. This compact, low-power sensor is perfect for body induction lamps, security systems, and battery-operated devices, ensuring automatic control and effortless convenience. Experience seamless automation with a sensing distance of up to 3 meters and an easy installation process.
