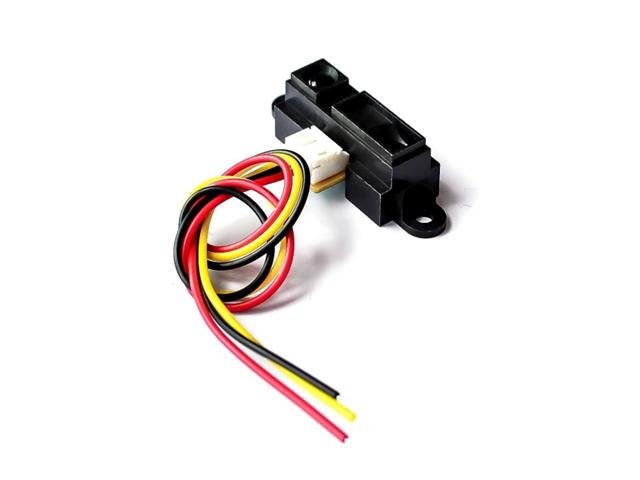

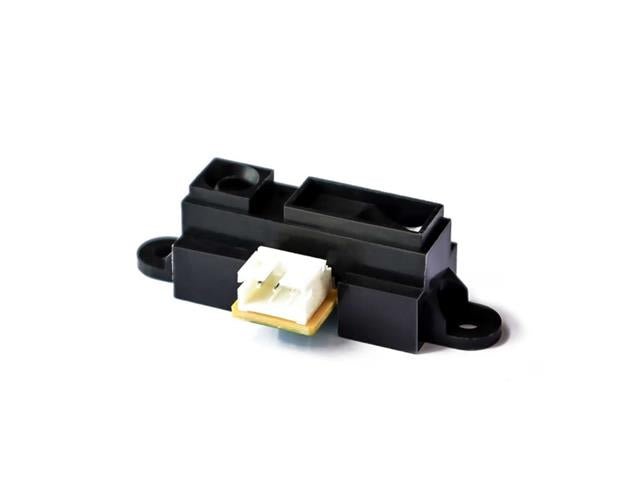

Sharp GP2D12 IR Distance Sensor 10-80cm with 3Pin JST Connector
Sharp GP2D12 IR Distance Sensor
Overview
GP2Y0A21YK0F is a distance measuring sensor unit,composed of an integrated combination of PSD
(position sensitive detector) , IRED (infrared emittingdiode) and signal processing circuit.
The variety of the reflectivity of the object, the environmental temperature and the operating duration are not influenced easily to the distance detection because of adopting the triangulation method.
This device outputs the voltage corresponding to the detection distance. So this sensor can also be used as a proximity sensor.
Specifications
Distance measuring range : 10 to 80 cm
Analog output type

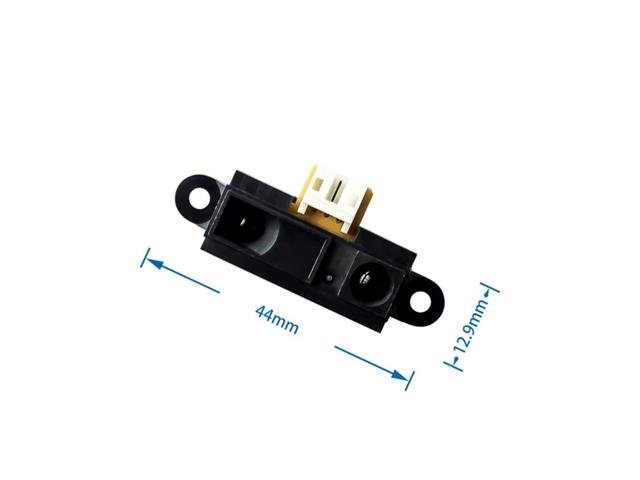

Package size : 29.5×13×13.5 mm
Consumption current : Typ. 30 mA
Supply voltage : 4.5 to 5.5 V
Applications
Touch-less switch (Sanitary equipment, Control of illumination, etc. )
Robot cleaner
Sensor for energy saving (ATM, Copier, Vending machine)
Additional Information
Device
Distance Sensor
Type
Sharp | GP2D12 IR
Discover precision with the HKD Distance Sensor 10-80CM-2YOA, ideal for touch-less switches and robotics. Measuring distances from 10 to 80 cm, this reliable sensor ensures accurate readings in various applications, enhancing energy efficiency and convenience. Upgrade your projects with this compact and effective infrared distance sensor today!
