HKD DUAL H-BRG MOTOR DRIVER 43A

Name: HKD DUAL H-BRG MOTOR DRIVER 43A - Communica [Part No: HKD DUAL H-BRG MOTOR DRIVER 43A]
Brand: Communica
SKU: HKD DUAL H-BRG MOTOR DRIVER 43A
Price: 95.65 ZAR
Availability: OutOfStock
Rating: 5.00 (1 reviews)

SKU: HKD DUAL H-BRG MOTOR DRIVER 43A

BRAND: Communica

Sold Out
R 110.00_{(inc VAT)}
R 95.65_{(ex VAT)}

Collections: 3D Printing & Accessories, DIY Kits, IoT, Internet of things, Robotics

Type: Motors, Motor Drivers & Controllers

Category: Bridge Motor Driver, Iot

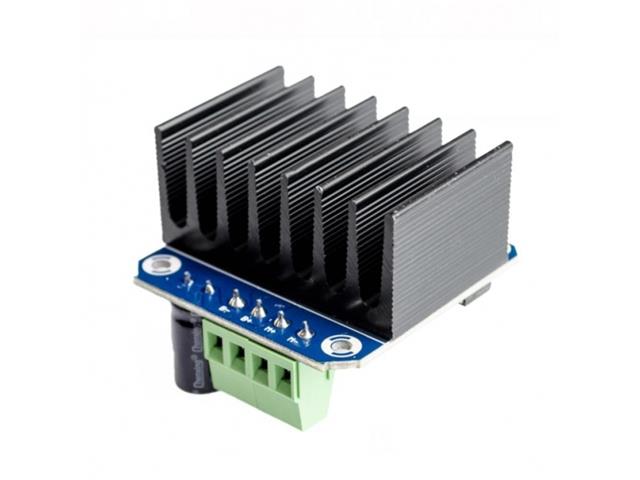

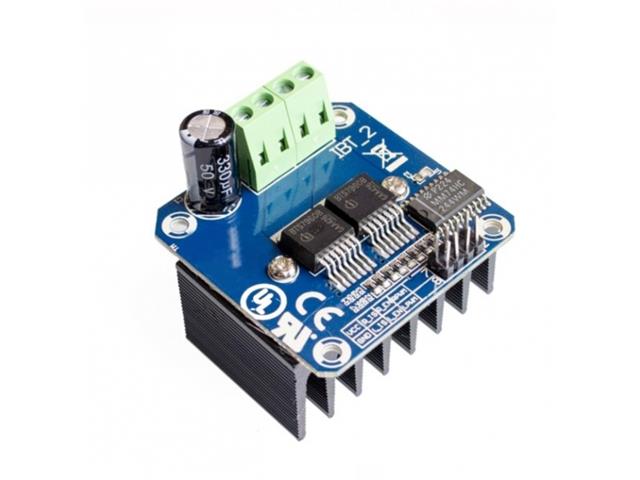

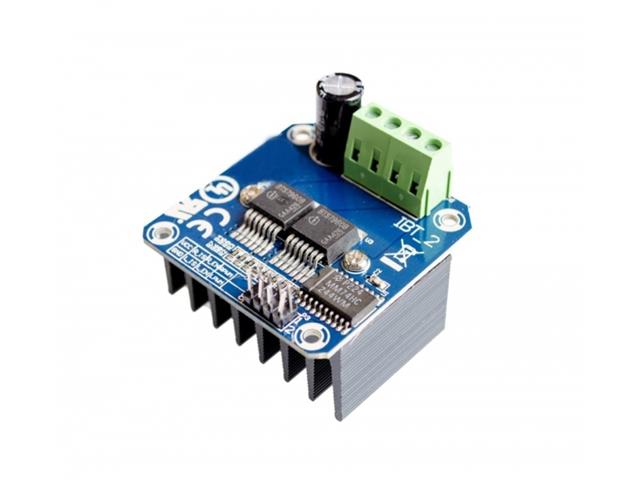

Dual High Power Full H-Bridge Motor Driver 43A-Using Infineon BTS7960 with Thermal Over-Current Protection.

Dual High Power Full H-Bridge Motor Driver

Overview

This driver uses Infineon chips BTS7960 composed of high-power drive full H-bridge driver module with thermal over-current protection. Double BTS7960 H-bridge driver circuit, with a strong drive and braking, effectively isolating the microcontroller and motor driver! High-current 43A.

Specifications

Double BTS7960 large current (43 A) H bridge driver
5V Isolate with MCU, and effectively protect MCU
5V Power Indicator on Board
Voltage Indication of Motor Driver Output end
Can Solder Heat Sink
Just need four lines from MCU to driver module (GND. 5V. PWM1. PWM2)
Size : 4 x 5 x 1.2 cm;
Able to reverse the motor forward, two PWM input frequency up to 25kHZ
Two heat flow passing through an error signal output
Isolated chip 5V power supply (can be shared with the MCU 5V), can also use the on-board 5V supply
The supply voltage 5.5V to 27V
Maximum Current : 43A
Input level : 3.3V-5V

Downloads

Additional Information

Device	Motor Driver
Type	Dual \| High Power \| Full H-Bridge
References	IBT-2 H-Bridge with Arduino

Enhance your robotics projects with the HKD Dual H-BRG Motor Driver 43A, featuring robust Infineon BTS7960 technology. This high-power, full H-bridge driver delivers up to 43A, ensuring reliable motor control with thermal over-current protection. Enjoy easy integration with your microcontroller and smooth forward/reverse operation, making it the perfect choice for precision applications.
