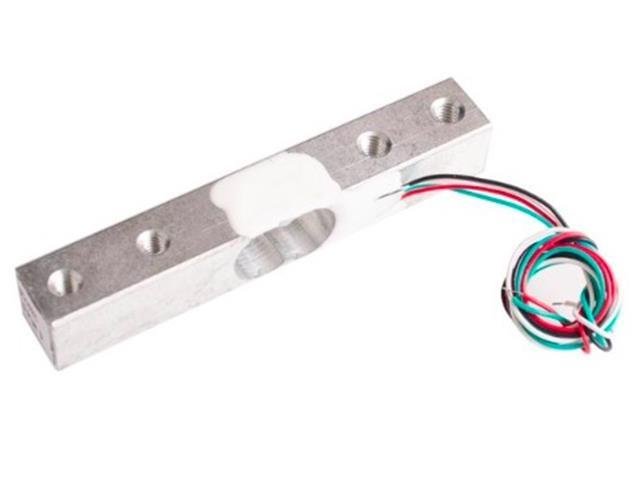

HKD ELECTRONIC LOAD CELL 1KG

Name: HKD ELECTRONIC LOAD CELL 1KG - Communica [Part No: HKD ELECTRONIC LOAD CELL 1KG]
Brand: Communica
SKU: HKD ELECTRONIC LOAD CELL 1KG
Price: 39.13 ZAR
Availability: InStock

SKU: HKD ELECTRONIC LOAD CELL 1KG

BRAND: Communica

In Stock
R 45.00_{(inc VAT)}
R 39.13_{(ex VAT)}

Collections: IoT, Internet of things

Type: Sensors

Category: Iot, Load Cell

1KG Load Cell Sensor. Rated Output: 1.0MV/V±0.15MV/V. Zero Output: ±0.1MV/V

1KG Load Cell Sensor

Specifications

Rated Load: 1Kg
Rated Output: 1.0mV/V±0.15mV/V
Zero Output: ±0.1mV/V
Creep: 0.03%F.S./30min
Input End: Red+(power), Black-(power)
Output End: Green+(signal), White-(signal)
Recommended operating voltage: 3 ~ 12 VDC
Maximum operating voltage: 15 VDC
Input Impedance: 1115±10%Ω
Output Impedance: 1000±10%Ω
Connection: red wire to +E,black wire to -E,Green wire to +S, White wire to -S

Additional Information

Device	Cell Sensor
Type	1KG \| Load
References	Arduino Scale With Load Cell and HX711 Amplifier
