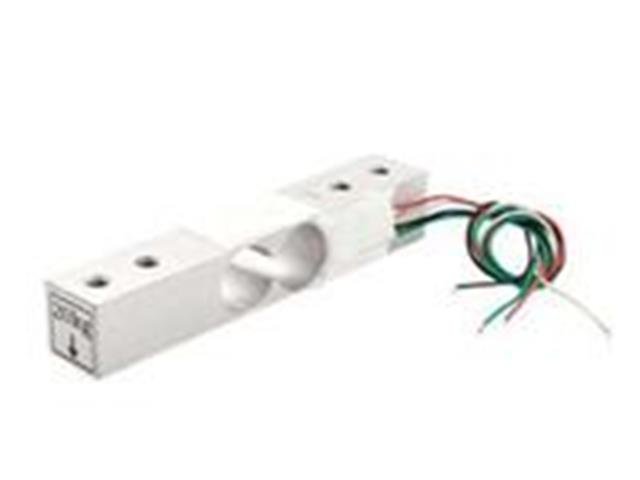

HKD ELECTRONIC LOAD CELL 20KG

SKU: HKD ELECTRONIC LOAD CELL 20KG

BRAND: Communica


20KG Load Cell Sensor. Rated Output: 1.0MV/V±0.15MV/V. Zero Output: ±0.1MV/V

20KG Load Cell Sensor

Specifications

  • Rated Load: 20Kg
  • Rated Output: 1.0mV/V±0.15mV/V
  • Zero Output: ±0.1mV/V
  • Creep: 0.03%F.S./30min
  • Input End: Red+(power), Black-(power)
  • Output End: Green+(signal), White-(signal)
  • Recommended operating voltage: 3 ~ 12 VDC
  • Maximum operating voltage: 15 VDC
  • Input Impedance: 1115±10%Ω
  • Output Impedance: 1000±10%Ω
  • Connection: red wire to +E,black wire to -E,Green wire to +S, White wire to -S

Additional Information

Device Cell Sensor
Type 20KG | Load
References

Arduino Scale With Load Cell and HX711 Amplifier
