HKD G1/2IN WATER FLOW SENSOR

Name: HKD G1/2IN WATER FLOW SENSOR - Communica [Part No: HKD G1/2IN WATER FLOW SENSOR]
Brand: Communica
SKU: HKD G1/2IN WATER FLOW SENSOR
Price: 60 ZAR
Availability: OutOfStock

SKU: HKD G1/2IN WATER FLOW SENSOR

BRAND: Communica

Sold Out
R 69.00_{(inc VAT)}
R 60.00_{(ex VAT)}

Collections: DIY Kits

Type: Irrigation / Water Pumps

Category: Water Flow Sensor

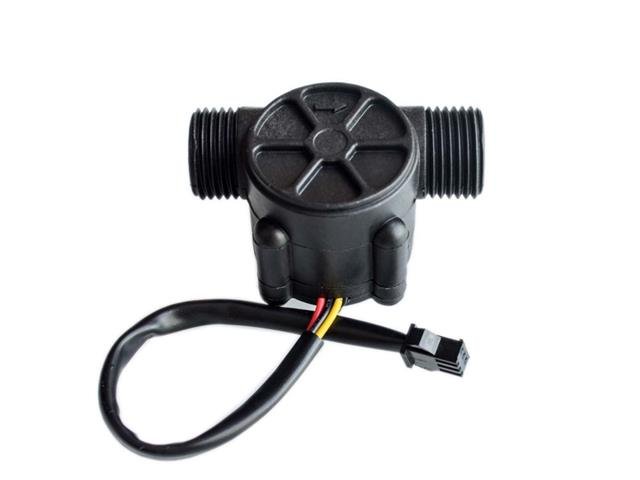

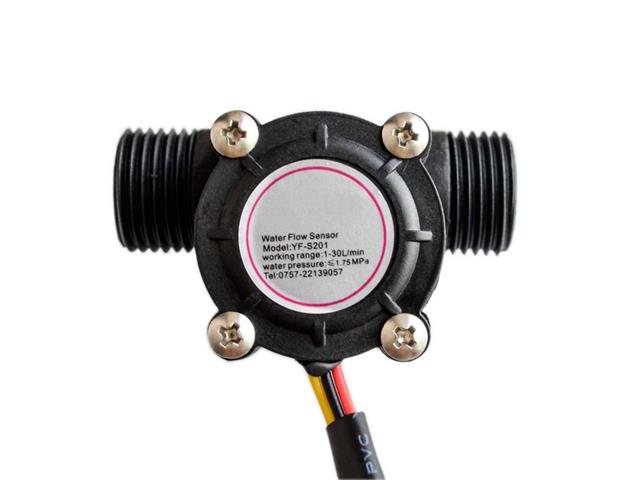

YF-S201 Water Flow Sensor BLACK G1/2IN

YF-S201 Water Flow Sensor

Specifications

Mainly used for water testing, water cooling system
Application: Water heaters, credit card machines, water vending machine, flow measurement device
High amplitude: ≥ 4.6V
Low amplitude: ≤ 0.5V
Electric strength: 1250V/min
Hydrostatic pressure testing: ≤ 2.0Mpa
Insulation resistance: ≥ 100MΩ
Use temperature: ≤ 80°C
The lowest rated working voltage: DC4.5 5V-24V
Maximum operating current: 15mA (DC 5V)
Working voltage range: DC 5~18V
Load capacity: ≤ 10mA (DC 5V)
Operating humidity range: 35%~90%RH (no frost)
Allowing pressure: pressure 2.0Mpa
Temperature: -25 ~ +80 °C
External threads: 1/2"
Outer diameter: 20mm
Intake diameter: 9mm
Outlet diameter: 12mm

Additional Information

Device	Water Flow Sensor
Type	YF-S201

Enhance your water systems with the HKD G1/2IN Water Flow Sensor, designed for precise flow measurement in water heaters and vending machines. With a robust operating range and high durability, it ensures reliable performance for all your water testing needs. Experience efficient monitoring and control, making it an essential tool for any water cooling system.
