HKD LITH CHARGER USB-C 5V/1A

SKU: HKD LITH CHARGER USB-C 5V/1A

BRAND: Communica


TP4056 USB Type-C 5V 1A 18650 Lithium Polymer (Li-Poly) Battery Charger Module With Charge Protection

Lithium Polymer (Li-Poly) Battery Charger Module

Overview

This tiny module is perfect for charging single cell 3.7V 1 Ah or higher LiPo cells such as the 18650s that do not have their own protection circuit.

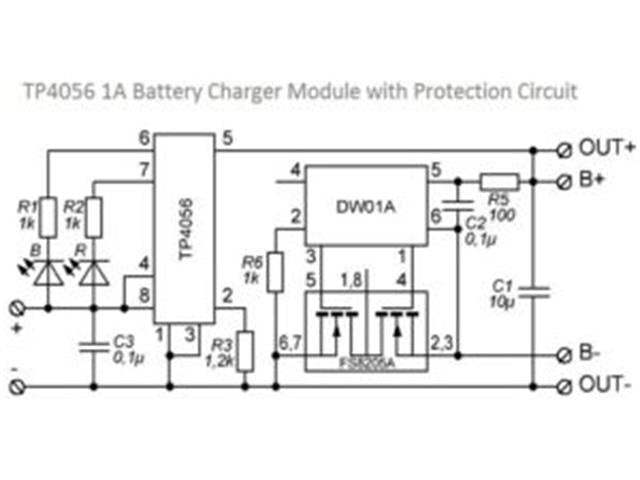

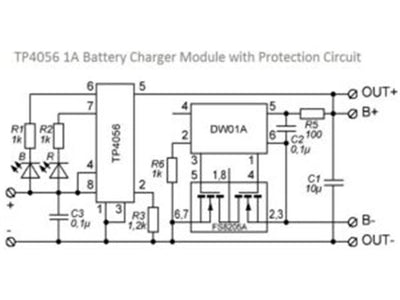

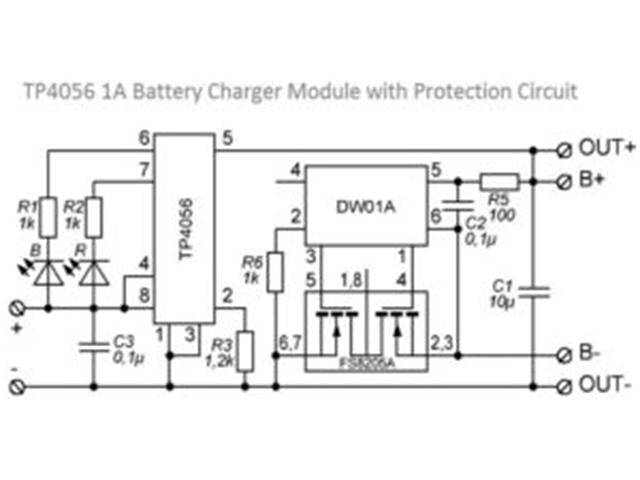

Based around the TP4056 charger IC and DW01 Deep Drain Battery Protection IC this module offers a 1A charge current.
The module cuts off the charging current when finished.

Furthermore when the battery voltage drops below 2.4V the protection IC will switch the load off to protect the cell from running at too low of a voltage – and also protects against over-voltage and reverse polarity connection (it will usually destroy itself instead of the battery) however please check you have it connected

Features

  • Under Voltage Cut off / Deep Drain Protection
  • Over Current Protection
  • Adjustable Current Limit through R-Prog
  • Over-voltage charging protection
  • USB Type-C
  • LED Status Indicator for Charging / Full charge status monitoring

Specifications

  • Module Name: Rechargeable lithium battery module
  • Method: linear charge 1%
  • Charging current: 1A Adjustable (Through 1.2k R3 RPROG Resistor)
  • Charge Accuracy: 1.5%
  • Input voltage: 4.5V-5.5V
  • Full charge voltage: 4.2V
  • Over-discharge / Deep Drain protection voltage: 2.5V
  • Over-current protection: 3A
  • Charging input interface: USB Type-C
  • Working temperature: -10 Degree to +85 Degree
  • Polarity Reversal: Not Allowed
  • Weight: 1.7g

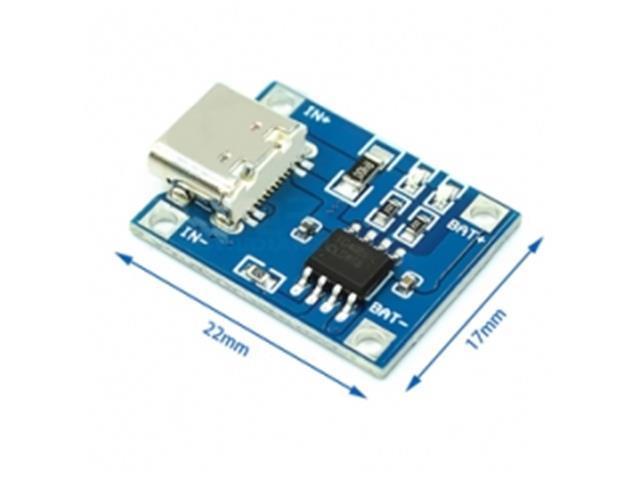

  • Dimensions: 28 * 17 * 1.1mm

How to Use the Module:

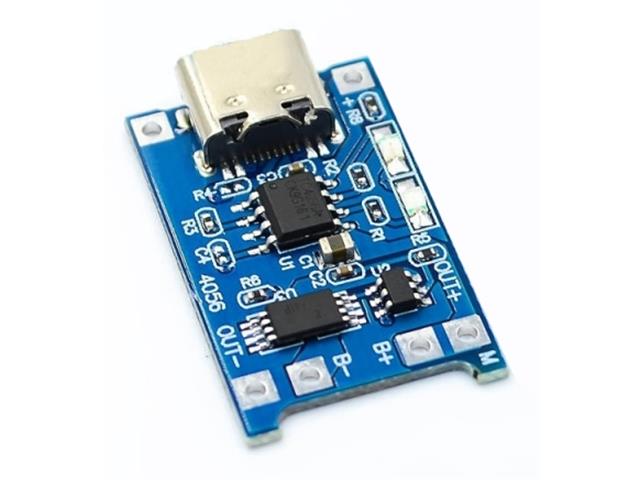

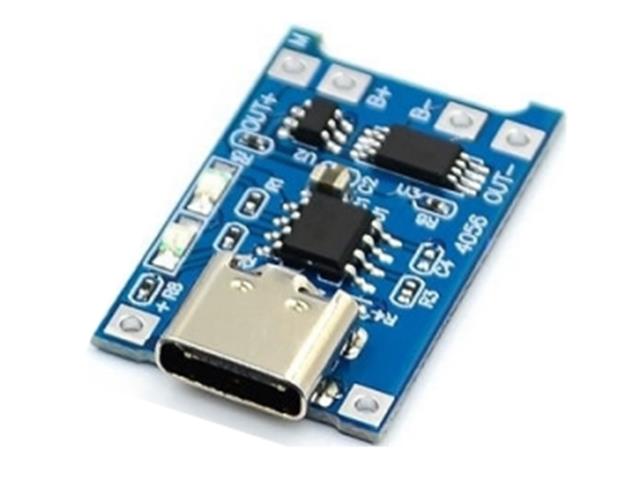

  • Connect micro/mini type C USB cable (depending on model), for power, or 5V DC to pads marked IN+ and IN- on the left-hand side of the module
  • Connect cell to charge to B+/B- pads on the right-hand side of the module
  • A load (something for the battery to power) can be connected to the OUT+/OUT- pads on the right-hand side

Important! Disconnect load when charging

The Red LED indicates charging in progress,
The Blue LED indicates charging has finished.

Additional Information

Device Charger Module
Type Lithium | Polymer (Li-Poly) | Battery
