HKD MINI SPEED SENSOR -74HC14

Name: HKD MINI SPEED SENSOR -74HC14 - Communica [Part No: HKD MINI SPEED SENSOR -74HC14]
Brand: Communica
SKU: HKD MINI SPEED SENSOR -74HC14
Price: 15.65 ZAR
Availability: InStock

SKU: HKD MINI SPEED SENSOR -74HC14

BRAND: Communica

R 18.00_{(inc VAT)}
R 15.65_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over ZAR 1,000.00

Collections: IoT, Internet of things

Type: Sensors

Category: Iot, Speed Measuring Sensor

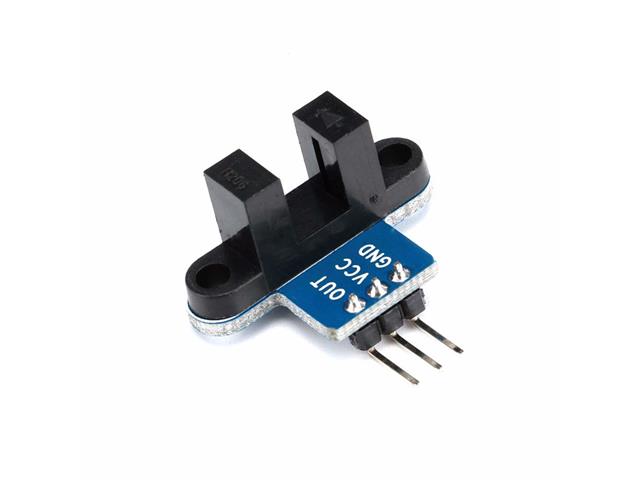

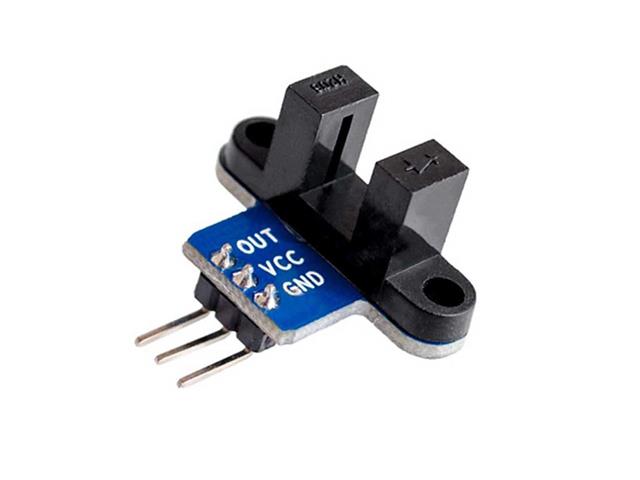

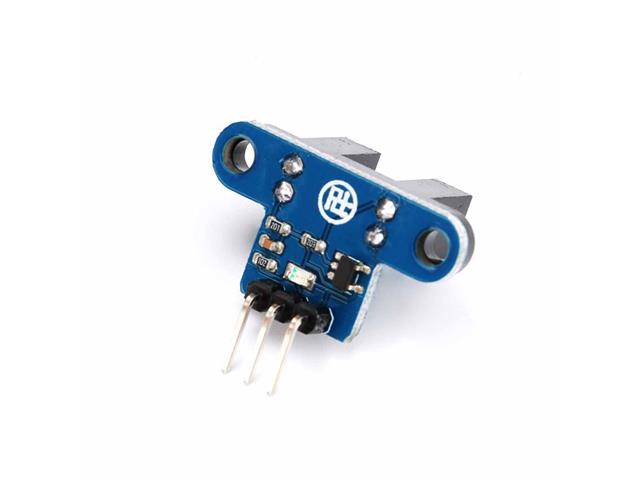

IR Infrared Slotted Optical Speed Measuring Sensor

Slotted Optical Speed Measuring Sensor

Overview

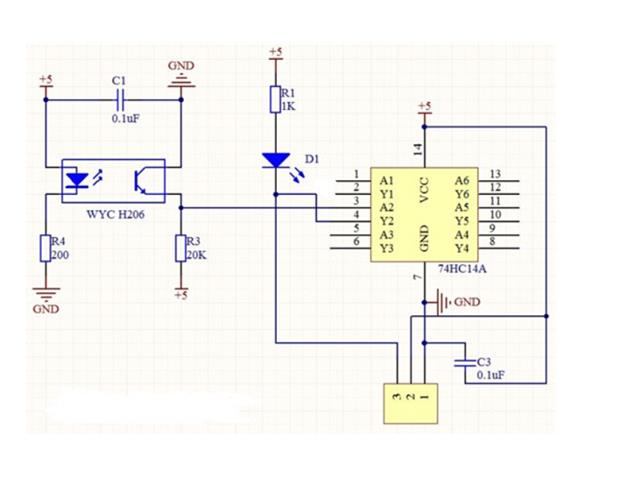

The slot type photoelectric sensor is composed of an infrared light emitting diode and an NPN phototransistor with a groove width of 5.9 mm. As long as the non-transparent object passes through the slot type, it can be triggered (used with the shop's car code wheel) to output TTL low level. The Schmitt trigger is used to shake the pulse, which is very stable and can be used for measuring the speed of the car, measuring the distance and the like! M3 screw mounting holes at both ends.

Product Parameters:

Working voltage: 3.3V-5V
Output form: digital switch OUT output (0 and 1)

Additional Information

Device	Measuring Sensor
Type	Slotted \| Optical Speed

Elevate your projects with the HKD Mini Speed Sensor - 74HC14, a reliable slotted optical sensor designed for precise speed and distance measurements. Operating at 3.3V-5V, it delivers stable TTL output for seamless integration. Perfect for robotics and automotive applications, this sensor ensures accuracy and efficiency in your designs.
