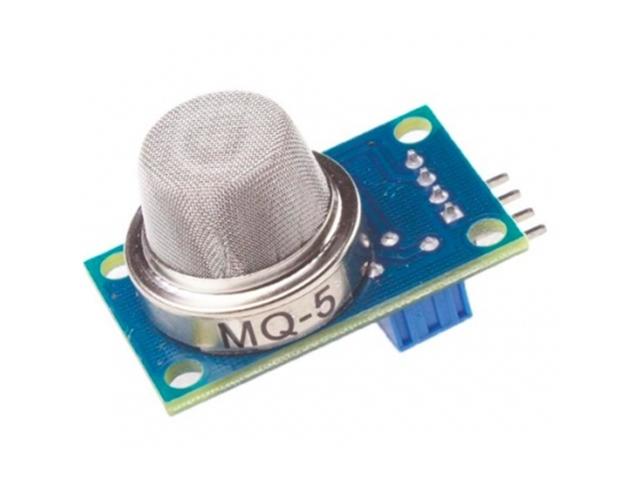

HKD MQ5 LPG GAS SENSOR BOARD

Name: HKD MQ5 LPG GAS SENSOR BOARD - Communica [Part No: HKD MQ5 LPG GAS SENSOR BOARD]
Brand: Communica
SKU: HKD MQ5 LPG GAS SENSOR BOARD
Price: 33.91 ZAR
Availability: OutOfStock

SKU: HKD MQ5 LPG GAS SENSOR BOARD

BRAND: Communica

Sold Out
R 39.00_{(inc VAT)}
R 33.91_{(ex VAT)}

Collections: IoT, Internet of things

Type: Sensors

Category: Gas Sensors, Iot

Adjustable Gas Sensor for - Hydrogen (H2), LPG, Methane-natural Gas (CH4), Carbon Monoxide (CO), and Alcohol. Detects 300-10,000PPM

MQ-5 liquefied gas Methane Gas Sensor Module

Overview

Suitable for home or industrial on LPG, natural gas, coal gas monitoring devices. Excellent resistance to alcohol, smoke interference.

Features

Using high-quality dual-panel design, with power indicator and TTL signal output instructions;
With a DO switch signal (TTL) output and AO analog signal output;
TTL output valid signal is low. (When the output low signal light can be directly connected microcontroller or relay module)
The analog output voltage, the higher the concentration the higher the voltage.
For gas, natural gas has better detection sensitivity.
There are four screw holes for easy positioning;
Product Dimensions : 32 x 20 x 22
With a long service life and reliable stability
Rapid response and recovery characteristics

Specifications

Standard Work Condition

Circuit Voltage : 5V±0.1
Heating Voltage : 5V±0.1
Load Resistance : 20KΩ
Heater Resistance : 31±10%
Heating Consumption : less than 800mw

Environment Condition

Using Temparature : 10°C-50°C
Storage Temparature : -20°C-70°C
Related humidity : less than 95%Rh
Oxygen concentration : 21%(standard condition)Oxygen concentration can affect sensitivity

Sensitivity Characteristic

Sensing Resistance : 10KΩ- 60KΩ (5000ppm methane)
Concentration Slope Rate : ≤0.6
Temparature : 20°C±2°C
Humidity : 65%±5%

Buy now

Additional Information

Device	Sensor Module
Type	MQ-5 \| Gas \| Methane \| Gas
