HKD PIEZO DISC VIBRATION SENSOR - Sensors -

HKD PIEZO DISC VIBRATION SENSOR

Name: HKD PIEZO DISC VIBRATION SENSOR - Communica [Part No: HKD PIEZO DISC VIBRATION SENSOR]
Brand: Communica
SKU: HKD PIEZO DISC VIBRATION SENSOR
Price: 20 ZAR
Availability: OutOfStock

SKU: HKD PIEZO DISC VIBRATION SENSOR

BRAND: Communica

Sold Out
R 23.00_{(inc VAT)}
R 20.00_{(ex VAT)}

Collections: IoT, Internet of things

Type: Sensors

Category: Iot, Vibration Sensors

Piezo Electric Transducer-voltage Output Proportional to level of Strain-analogue Interface (SUPPLY 3.3-5V)

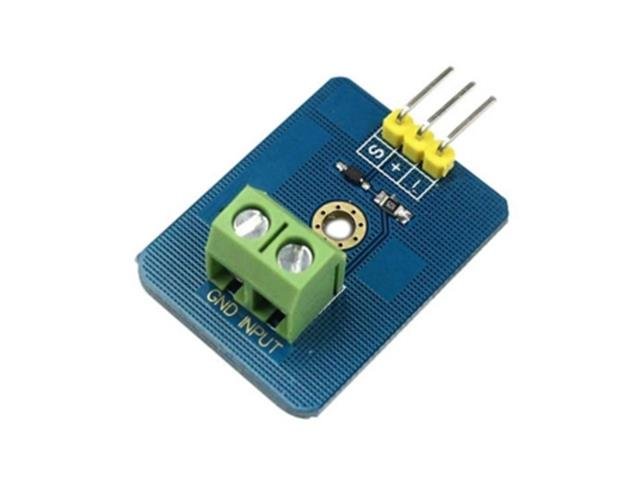

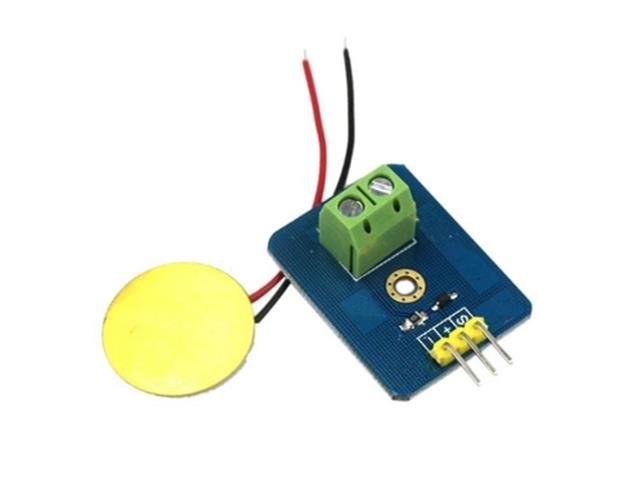

Analog Vibration Sensor

Specifications

Working Voltage: 3.3V or 5V
Working Current: <1mA
Operating Temperature Range: -10 ~ + 70
Interface Type: Analog Output
Item Size: 30mm x 23mm
GPIO: S; signal output, +; power supply (VCC), -; ground (GND)
S-port is connected with the controller\'s analog input pin
5V and GND are respectively connected the power supply of + 5V and GND

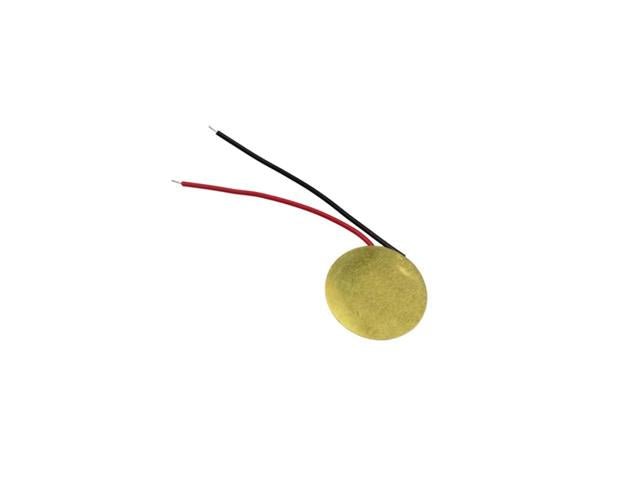

Input: Positive electrode of the piezoelectric ceramic
Gnd: Negative electrode of the piezoelectric ceramic
Input and Gnd are already connected with the piezoelectric ceramics\' positive and negative

Additional Information

Device	Sensor
Type	Analog \| Vibration
