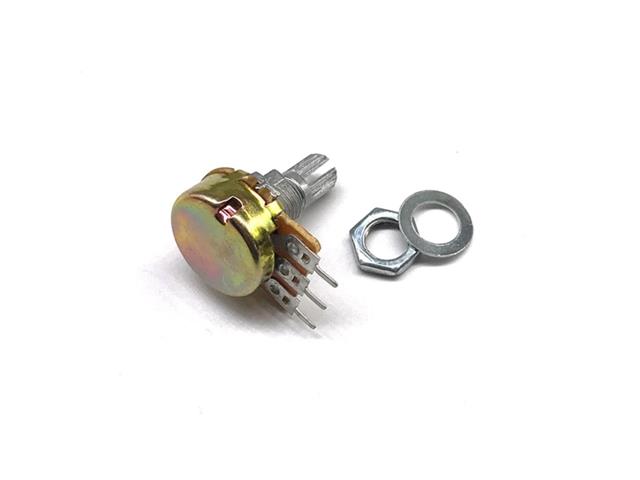

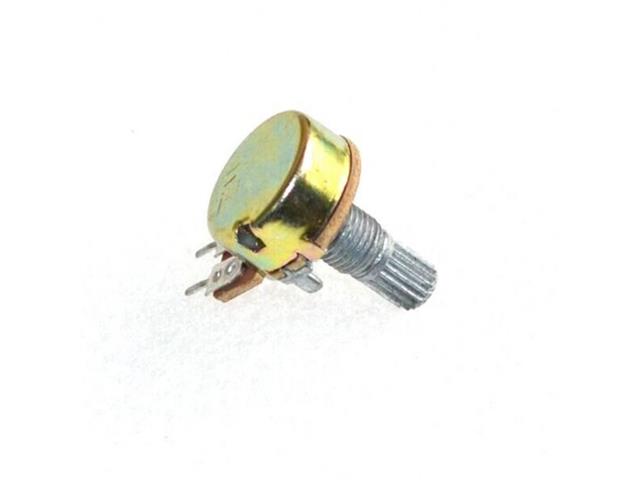

HKD POTLN 502PC SPLINE SHAFT

Name: HKD POTLN 502PC SPLINE SHAFT - Communica [Part No: HKD POTLN 502PC SPLINE SHAFT]
Brand: Communica
SKU: HKD POTLN 502PC SPLINE SHAFT
Price: 5.22 ZAR
Availability: InStock

SKU: HKD POTLN 502PC SPLINE SHAFT

BRAND: Communica

R 6.00_{(inc VAT)}
R 5.22_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over R1,000.00

Collections: Passive Components

Type: Potentiometers, Trimmers & Rheostats

Category: PCB/Panel Mount Potentiometer

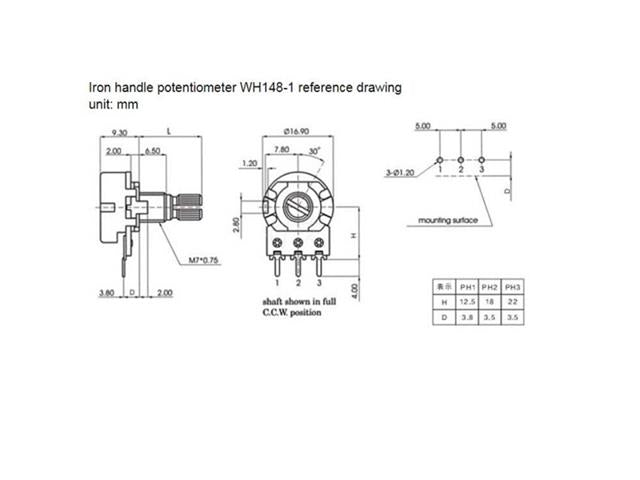

5KΩ PCB/Panel Mount Potentiometer with Spline Shaft

PCB/Panel Mount Potentiometer

Specifications

Electrical Characteristics

Temp Range : -10 °C~100 °C
Rated Power:
- Curve B:O.125W
- Other Curve B:0.053W
Resistance Range : 5KΩ
Allow Desistance Tolerance : ±20%(1MΩ or more30%)
Rotation Noise : ≤47mV
Terminal Resistance :
R≥250KΩ 0.1%R max
250KΩ>R>10KΩ 20Ω max
10KΩ≥R 10Ω max
Resistance Law : A, B, C
Dielectric : AC500V, 1minnute
Insulation Resistance : More than 100MΩ at DC500V

Mechanical Characteristics

Rotational Toeque : 2~20 mN.m (20~200gf.cm)
Total Rotational Angle : 300° ± 50°
Rotary Life : 10,000 cycles
Shaft Stopper Strength : 6Kgf.cm
Push Pull Strength : 60 N
Click position : Center detent or 10,20,40 position clicks
Soldering : 235°C±5°C :≤3s

Additional Information

Device	Potentiometer
Type	PCB/Panel Mount

Elevate your projects with the HKD POTLN 502PC Spline Shaft Potentiometer. This reliable 5KΩ PCB/Panel mount component offers precise control with a durable design, ensuring smooth operation and longevity. With a wide temperature range and excellent resistance tolerance, it's perfect for any application requiring accuracy and stability. Upgrade your electronics with this essential potentiometer for enhanced performance today!
