3D Printer Ramps 1.6 Controller Board for REPRAP. Supports: A4988 DRV8825 AND OTHER Motor Drivers and LCD: 12864 LCD/2004 LCD/ TFT3.5. Input Voltage: 12V. Power: 270W. Patch MOS Tube: B55NF06. Size: 101.5mm x 60.5mm.

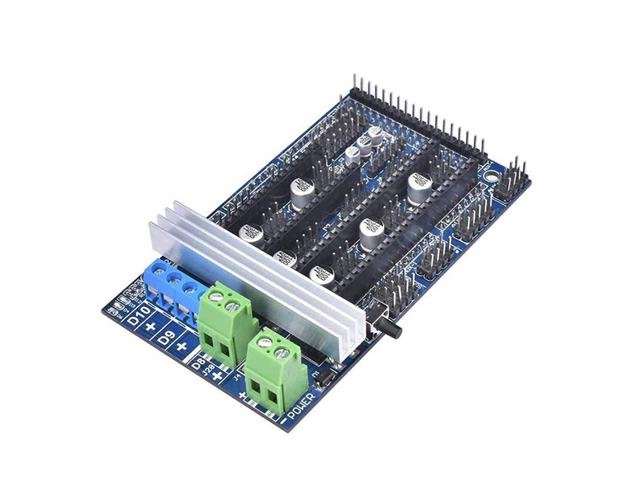

3D Printer Ramps 1.6 Controller Board
Features
The RAMPS 1.6 is the second RAMPS iteration released by BIQU/BIGTREETECH. It replaces the original green power connector with a pair of screw terminals, adds a larger heatsink over the MOSFETS, and has a larger bed MOSFET. It maintains the surface-mounted fuses and flush MOSFETS of the RAMPS 1.5.
The positions of the D1 and D2 diodes have been swapped from the positions in RAMPS 1.4, the D1 diode is now the diode closest to fuse F2. The same is true for RAMPS 1.5.
The Power of Ramps 1.6 is larger than Ramps 1.5, the largest power will be up to or 270W, and Ramps 1.5 just can be up to 200W, or smaller than 200W Support motor drivers, support A4988 and DRV8825 and other motor drivers.
Additional Information
Device
Controller Board
Type
3D Printer | Ramps 1.6
Upgrade your 3D printing experience with the HKD RAMPS 1.6 Mega Shield. This powerful controller board supports A4988 and DRV8825 motor drivers, offering enhanced performance with up to 270W power. Its user-friendly design and improved heat management make it perfect for any DIY enthusiast looking to elevate their printer's capabilities.
